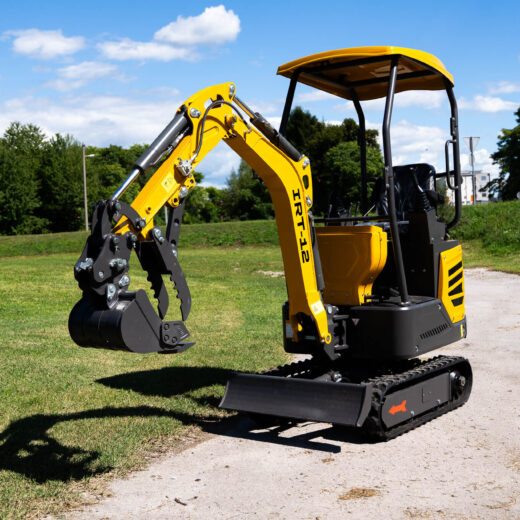

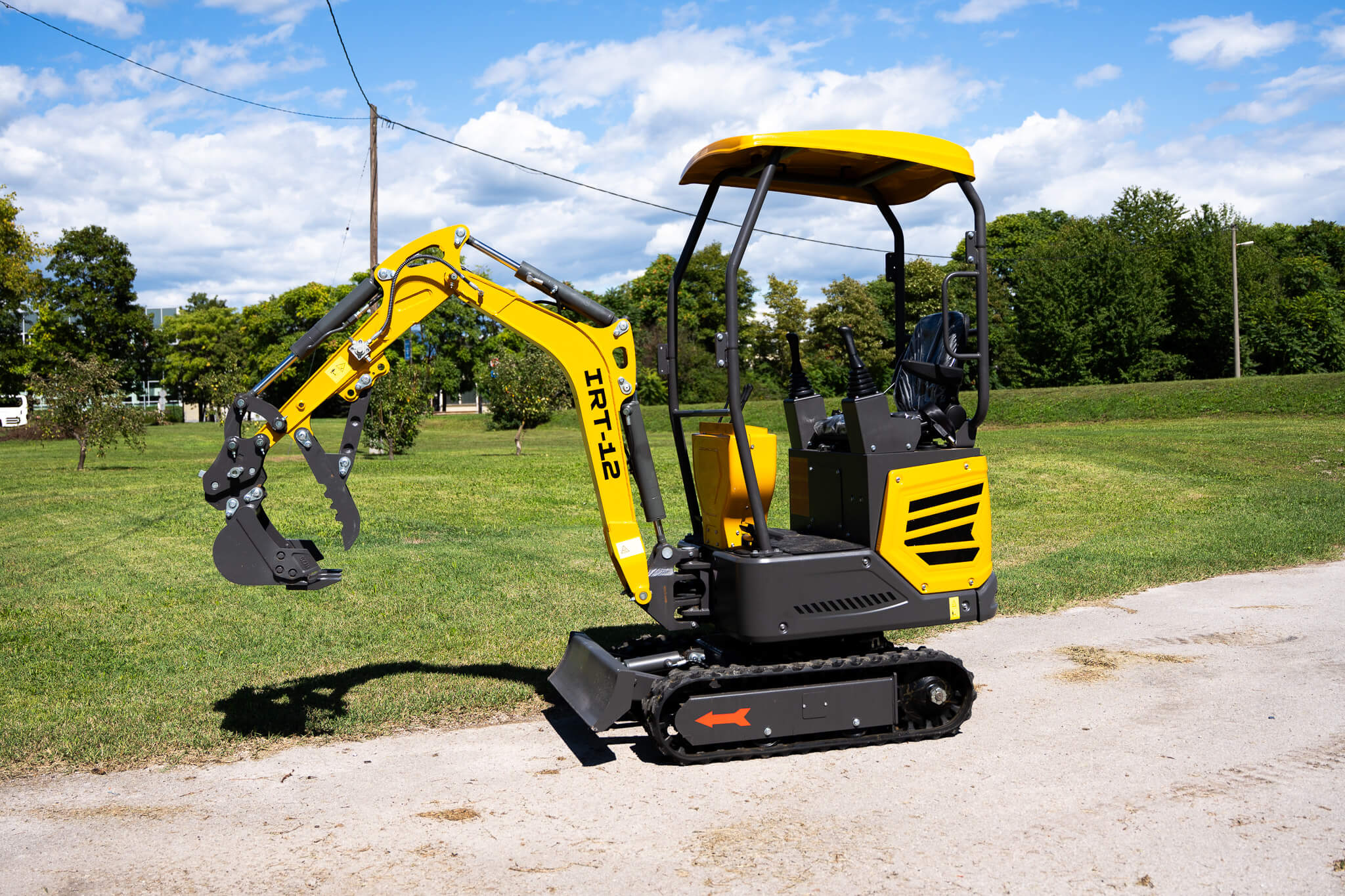

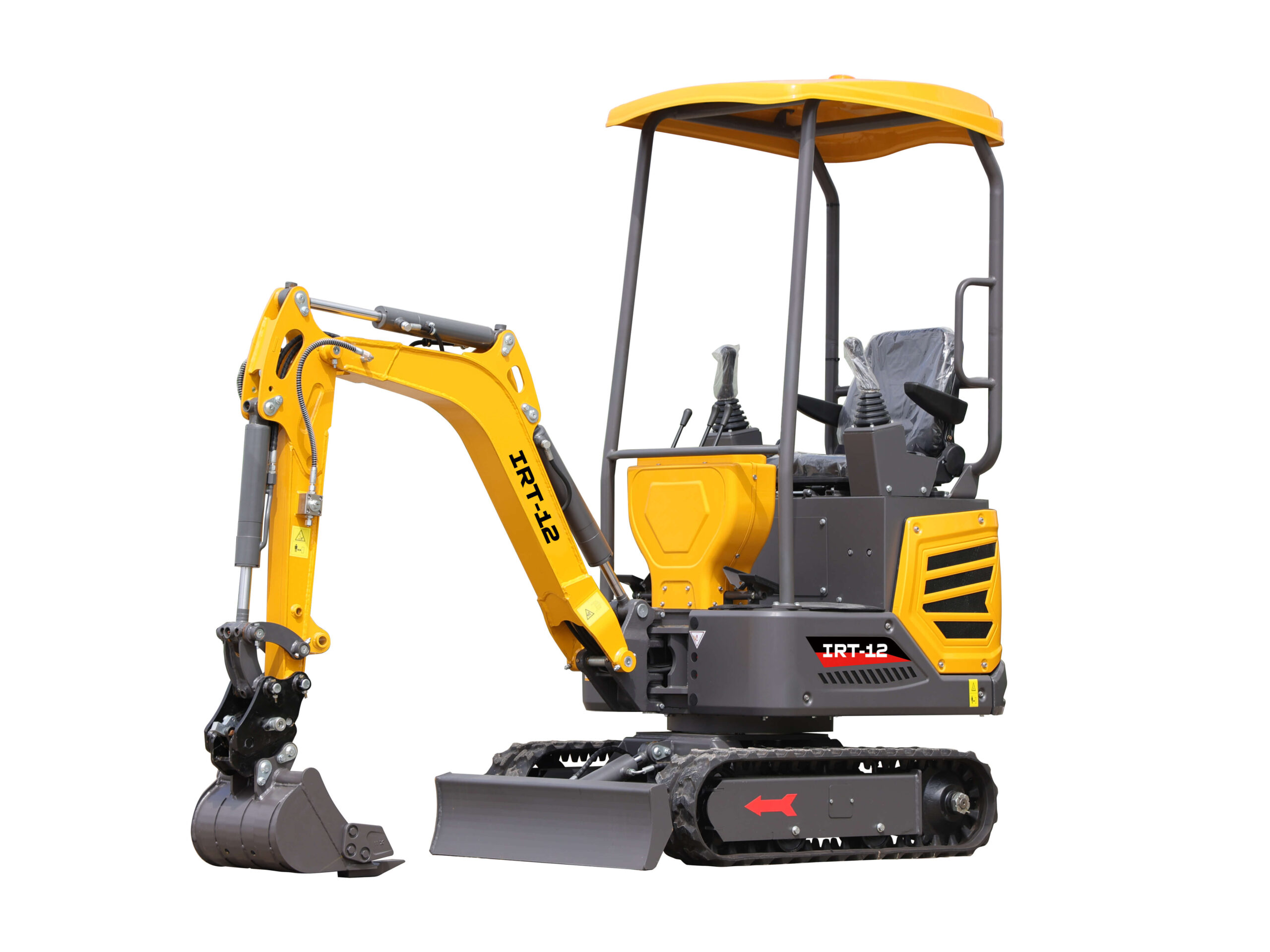

Mini excavator IRT12 – 1200kg

Name: Mini excavator IRT12 – 1200kg - Iron Toys UK
SKU: S00218-1
Price: 6300.00 GBP
Availability: InStock

In stock

IRT-12 is a powerful and reliable mini excavator weighing 1200 kg, suitable for professional use on construction sites and more demanding terrains, as well as for smaller construction tasks in confined spaces. It is powered by a KOOP KD192F diesel engine with a power of 7,6 kW (3000 rpm) and a displacement of 499 cc. In combination with a gear pump and a working pressure of 16 MPa, it enables an efficient hydraulic system with a flow of 21,6 + 10,8 L/min. The maximum digging force is 6,5 kN, and the machine maintains high performance even on slopes up to 30°. Thanks to the small turning radius (1190 mm) and the chassis width of 940 mm, it performs excellently in narrow and urban environments. is a powerful and reliable mini excavator weighing 1200 kg, suitable for professional use on construction sites and more demanding terrains, as well as for smaller construction tasks in confined spaces. It is powered by a KOOP KD192F diesel engine with a power of 7,6 kW (3000 rpm) and a displacement of 499 cc. In combination with a gear pump and a working pressure of 16 MPa, it enables an efficient hydraulic system with a flow of 21,6 + 10,8 L/min. The maximum digging force is 6,5 kN, and the machine maintains high performance even on slopes up to 30°. Thanks to the small turning radius (1190 mm) and the chassis width of 940 mm, it performs excellently in narrow and urban environments.

With the purchase, you receive FREE: Excavator bucket 40cm + Quick coupler

Delivery options

Purchase on installments

Send an inquiry

or

Call for an appointment

RELIABLE SERVICE

WARRANTY WITH PURCHASE

SPARE PARTS FOR ALL MACHINES

Working weight	1200 kg
Engine model	KOOP KD192F
Engine type	1-cylinder diesel
Engine power	7,6 kW / 3000 rpm
Engine displacement	499 cc
Driving speed	up to 1,2 km/h
The speed of cabin rotation	9 rpm
Maximum climbing ability	30°
Maximum digging force	6,5 kN
Pressure on the ground	0,3 kgf/cm²
Caterpillar material	tire
Track tensioning tip	Mechanical tension
Pump type	gear pump
Working pressure	16 MPa
Flow of hydraulic fluid	21,6 + 10,8 L/min (two pumps)
Capacity of the hydraulic reservoir	22 L
Fuel tank capacity	5,5 L
The largest digging radius on the ground	3020 mm
The greatest depth of digging	3080 mm
The greatest digging depth	1670 mm
The greatest digging depth	2840 mm
Maximum unloading height	2080 mm
The greatest vertical digging depth	1610 mm
Minimum turning radius	1190 mm
The maximum lifting height of the dozer blade	150 mm
The maximum depth of digging with a dozer blade	190 mm

Diesel engine KOOP KD192F (7,6 kW)
Rotation 360°
Gear hydraulic pump

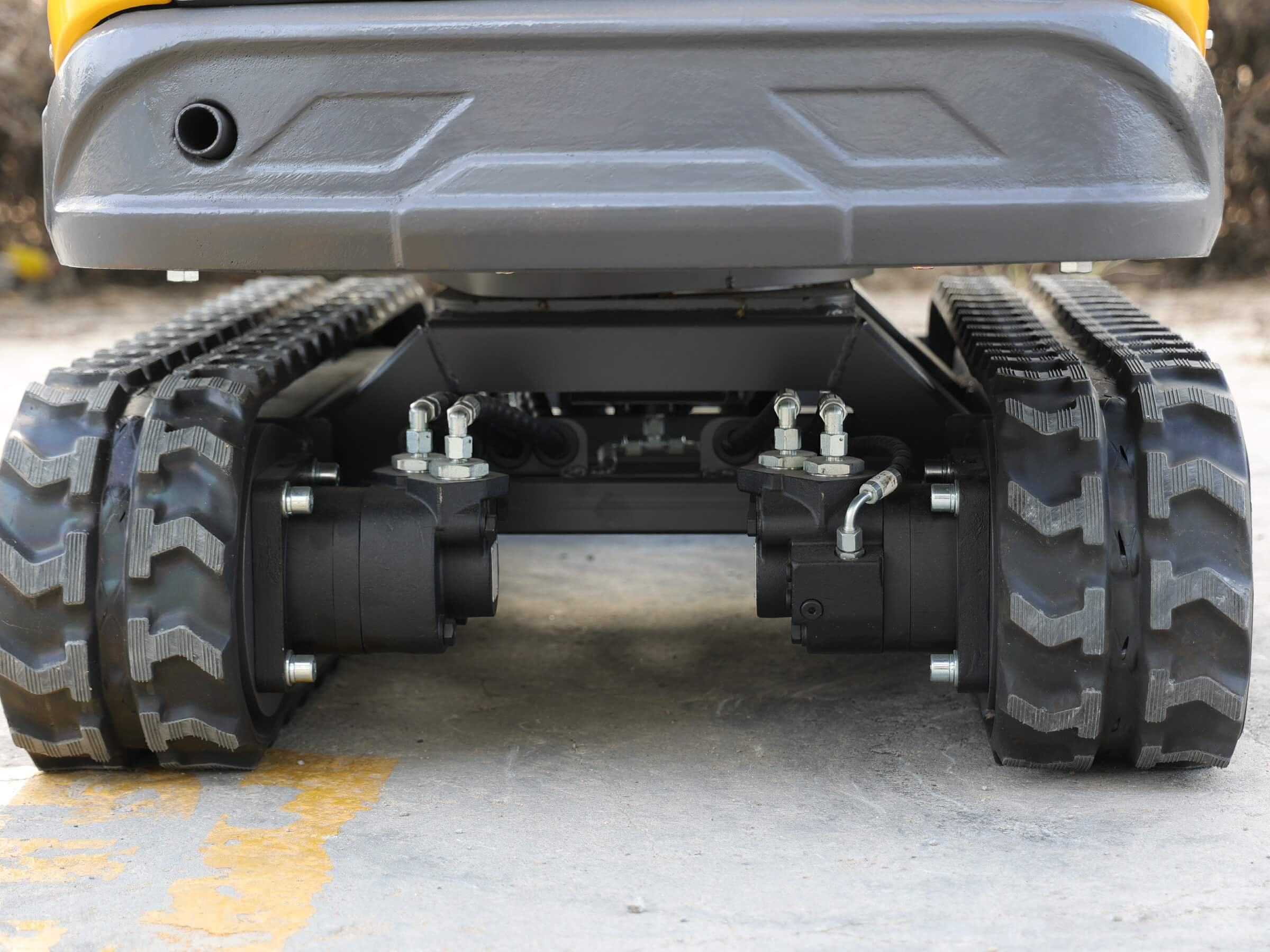

Rubber tracks – suitable for asphalt, concrete, tiles
Dozer board

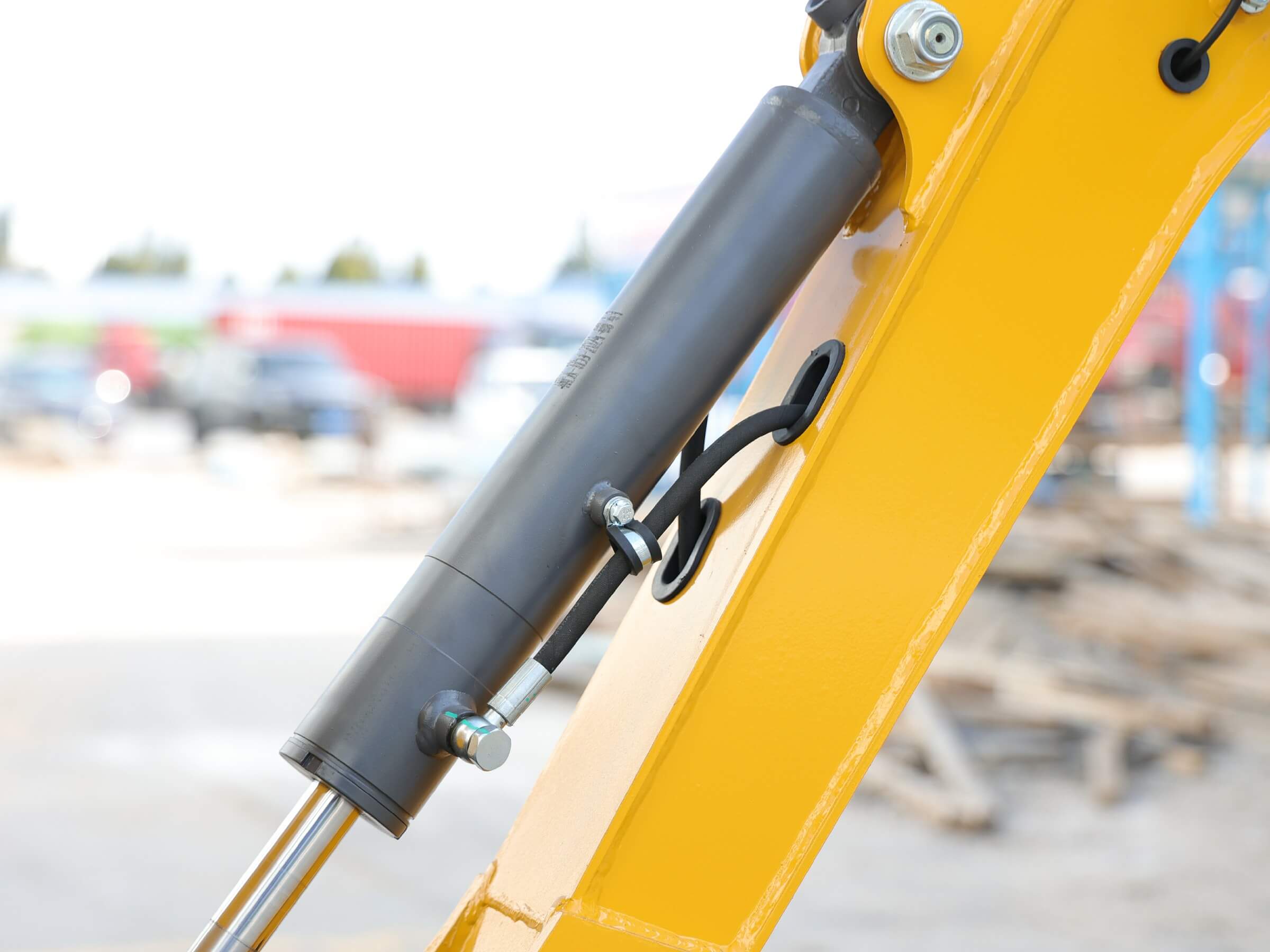

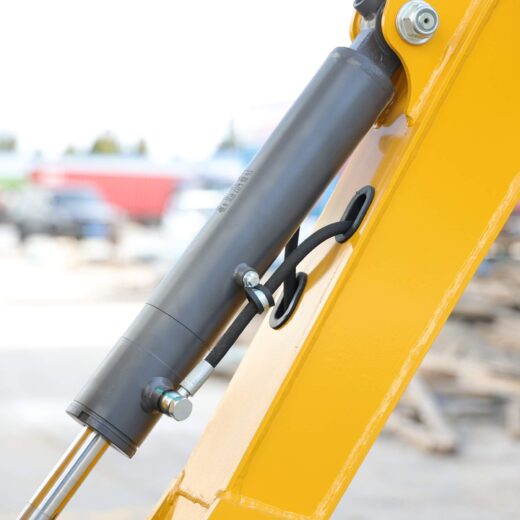

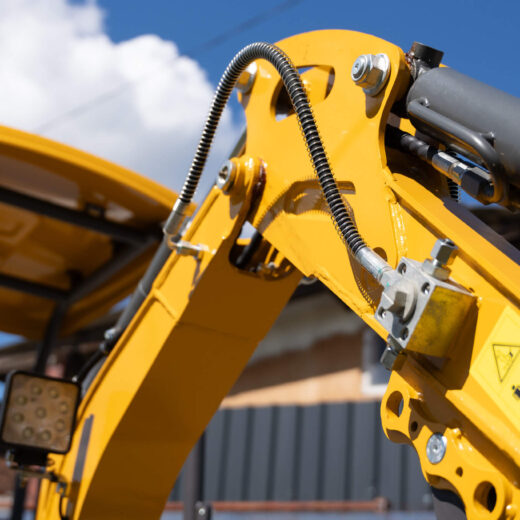

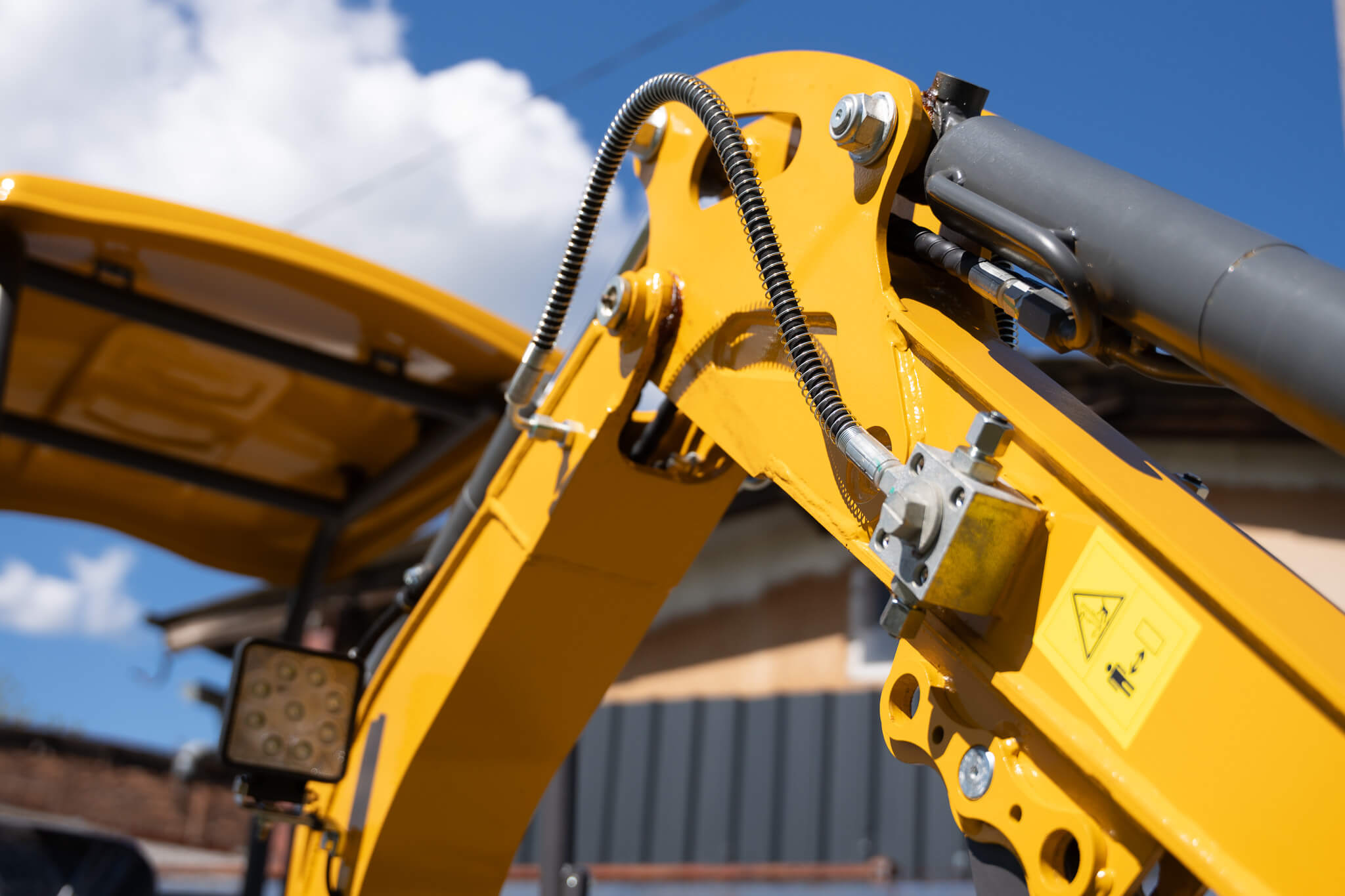

Hydraulic arm with a single cylinder
Spacious cabin with a flat floor
Ergonomic control handles (hydraulic pilot system)
Voltmeter, hour meter, light switch
Seat belt

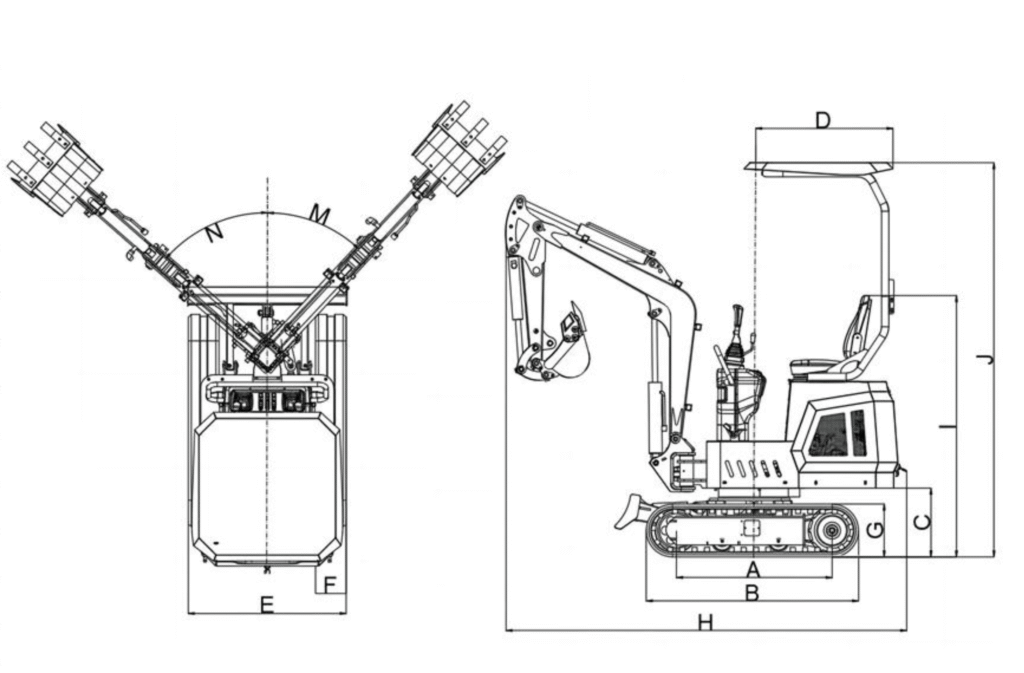

Dimensions

A – Wheelbase: 910 mm
B – Total track length: 1235 mm
C – Ground clearance of the platform: 400 mm
D – Rear turning radius: 830 mm
E – Chassis width: 940 mm
F – Track width: 180 mm
G – Track height: 320 mm
H – Transport length: 2350 / 2870 mm
I – Seat height from ground: 1560 mm
J – Total height: 2270 mm
K – Arm swing to the right: 40°
L – Arm swing to the left: 53° mm Seat height from ground: 1560 mm Total height: 2270 mm Arm swing to the right: 40° Arm swing to the left: 53°

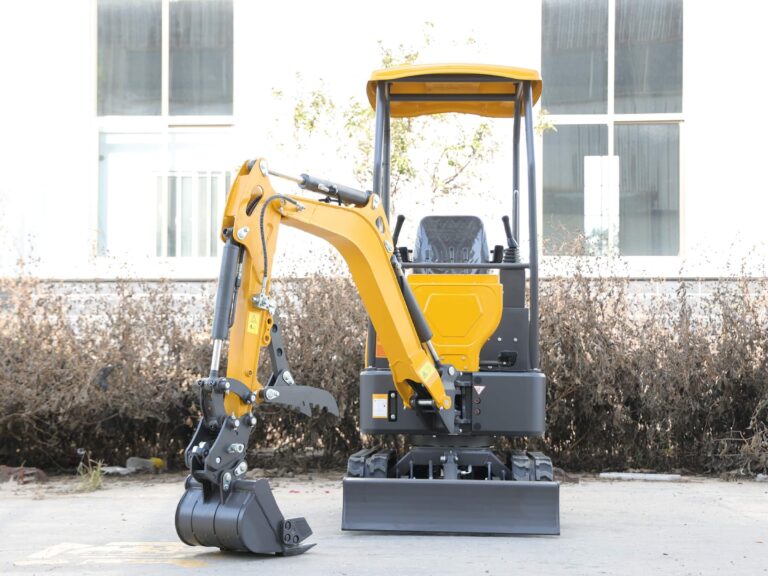

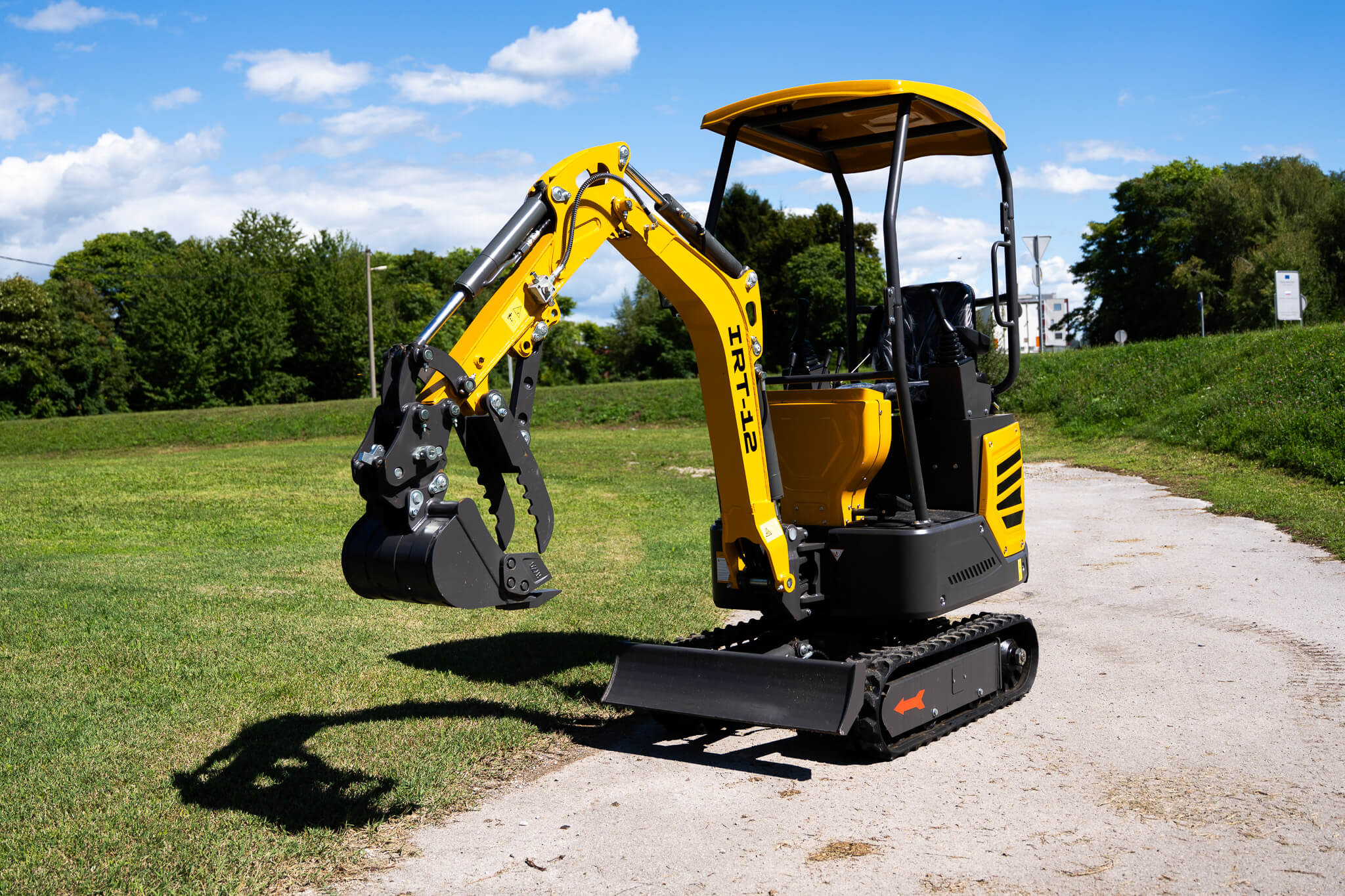

Compact, powerful, and efficient

IRT-12 is a powerful and reliable mini excavator weighing 1200 kg, suitable for professional use on construction sites and more demanding terrains, as well as for smaller construction tasks in confined spaces. Powered by a KOOP KD192F diesel engine with a power of 7,6 kW (3000 rpm) and a displacement of 499 cc. In combination with a gear pump and a working pressure of 16 MPa, it enables an efficient hydraulic system with a flow of 21,6 + 10,8 L/min. The maximum digging force is 6,5 kN, while the machine remains extremely efficient on slopes up to 30°. Thanks to the small turning radius (1190 mm) and the chassis width of 940 mm, it navigates excellently in narrow and urban environments. is a powerful and reliable mini excavator weighing 1200 kg, suitable for professional use on construction sites and more demanding terrains, as well as for smaller construction tasks in confined spaces. Powered by a KOOP KD192F diesel engine with a power of 7,6 kW (3000 rpm) and a displacement of 499 cc. In combination with a gear pump and a working pressure of 16 MPa, it enables an efficient hydraulic system with a flow of 21,6 + 10,8 L/min. The maximum digging force is 6,5 kN, while the machine remains extremely efficient on slopes up to 30°. Thanks to the small turning radius (1190 mm) and the chassis width of 940 mm, it navigates excellently in narrow and urban environments.

.

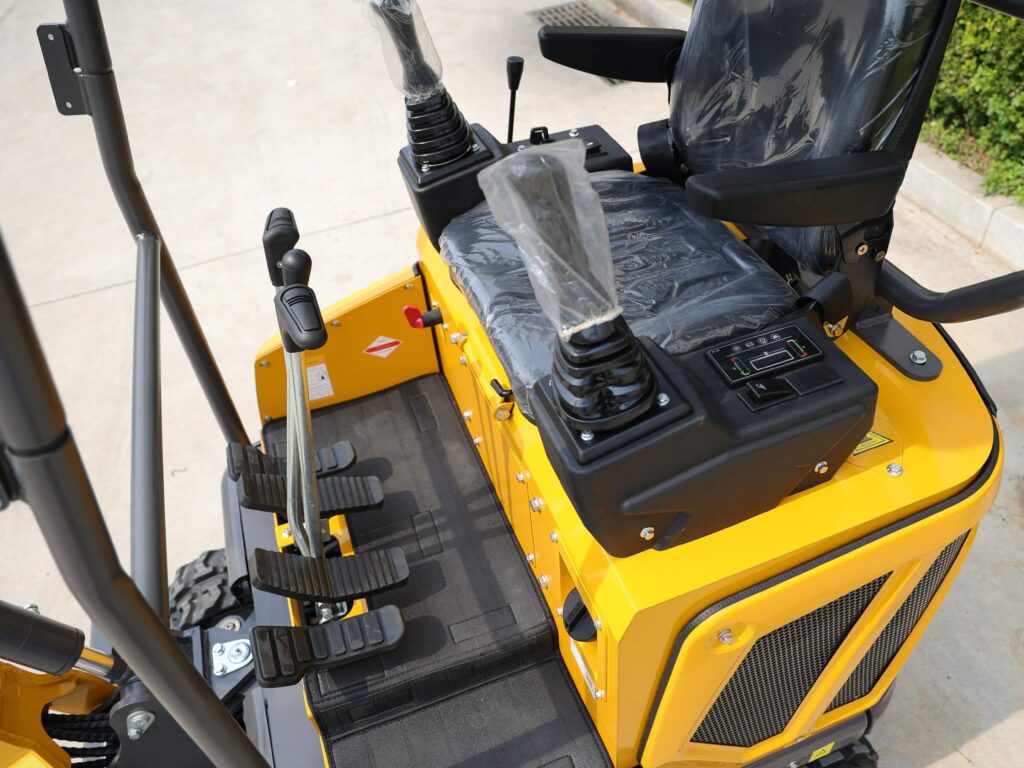

Spacious and comfortable cabin

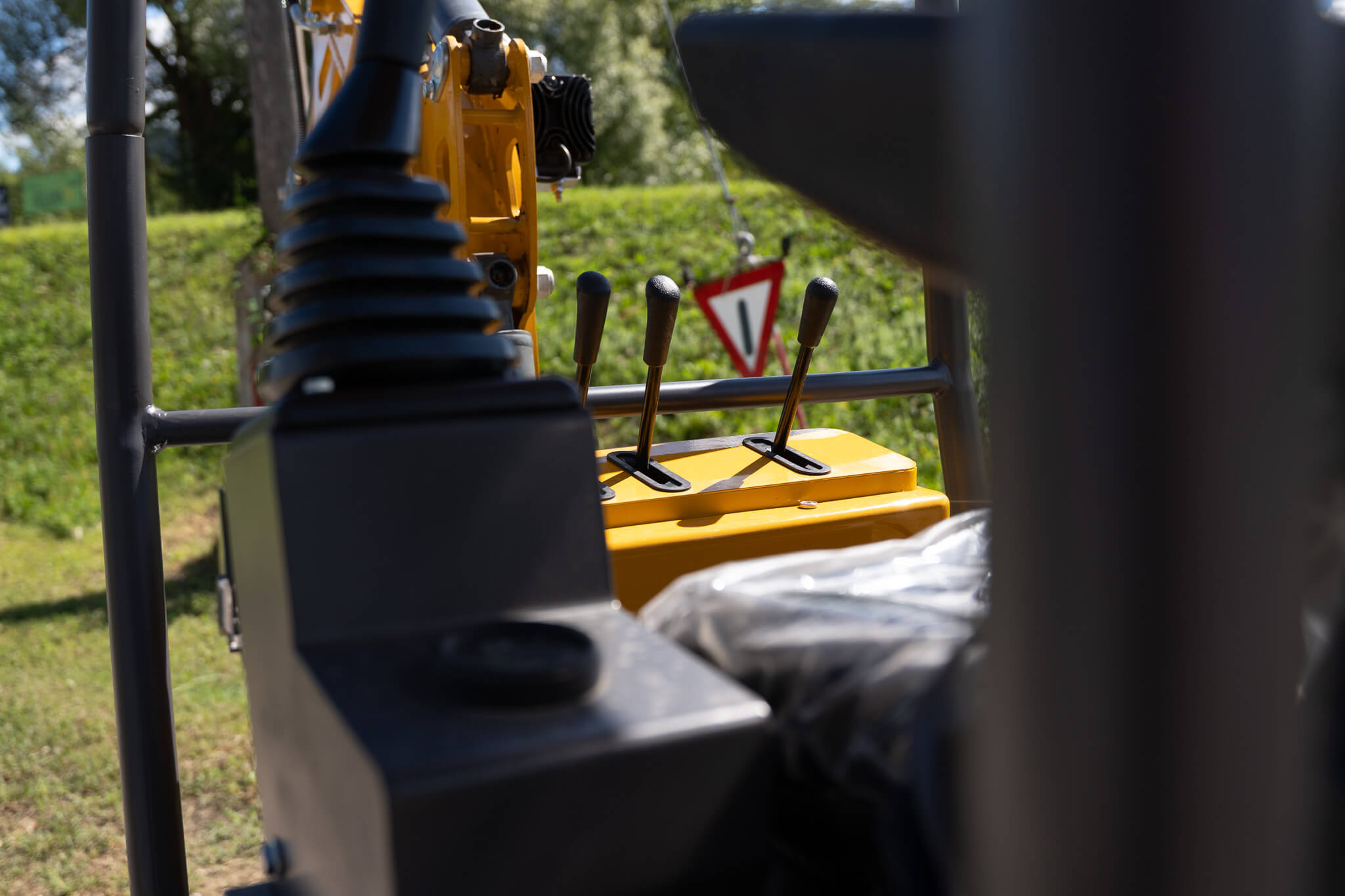

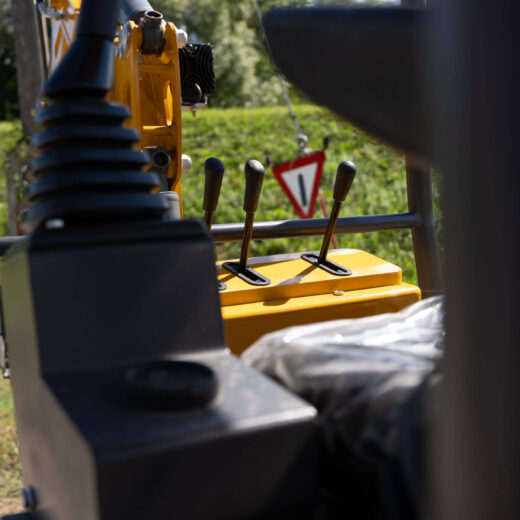

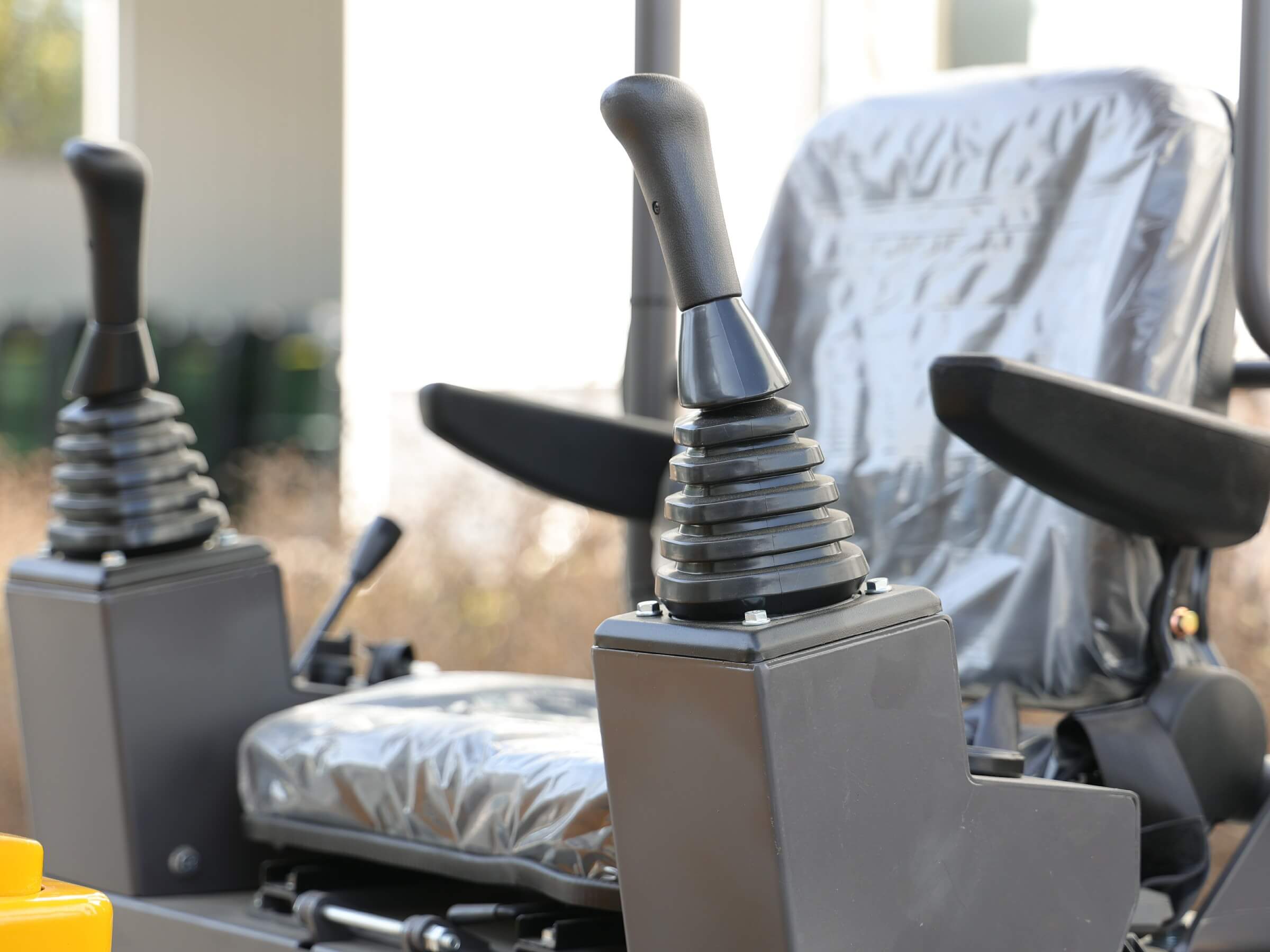

The cabin offers even more space and improved ergonomics for comfortable handling. A flat floor allows for easier movement, while the electronic control panel provides a quick overview of key functions such as operating hours, battery voltage, lighting, and startup. Hydraulic levers are positioned to allow precise control without effort, and the comfortable seat and safety belt ensure safety even during extended operation. Entering and exiting the cabin are simple, which further enhances the user experience.

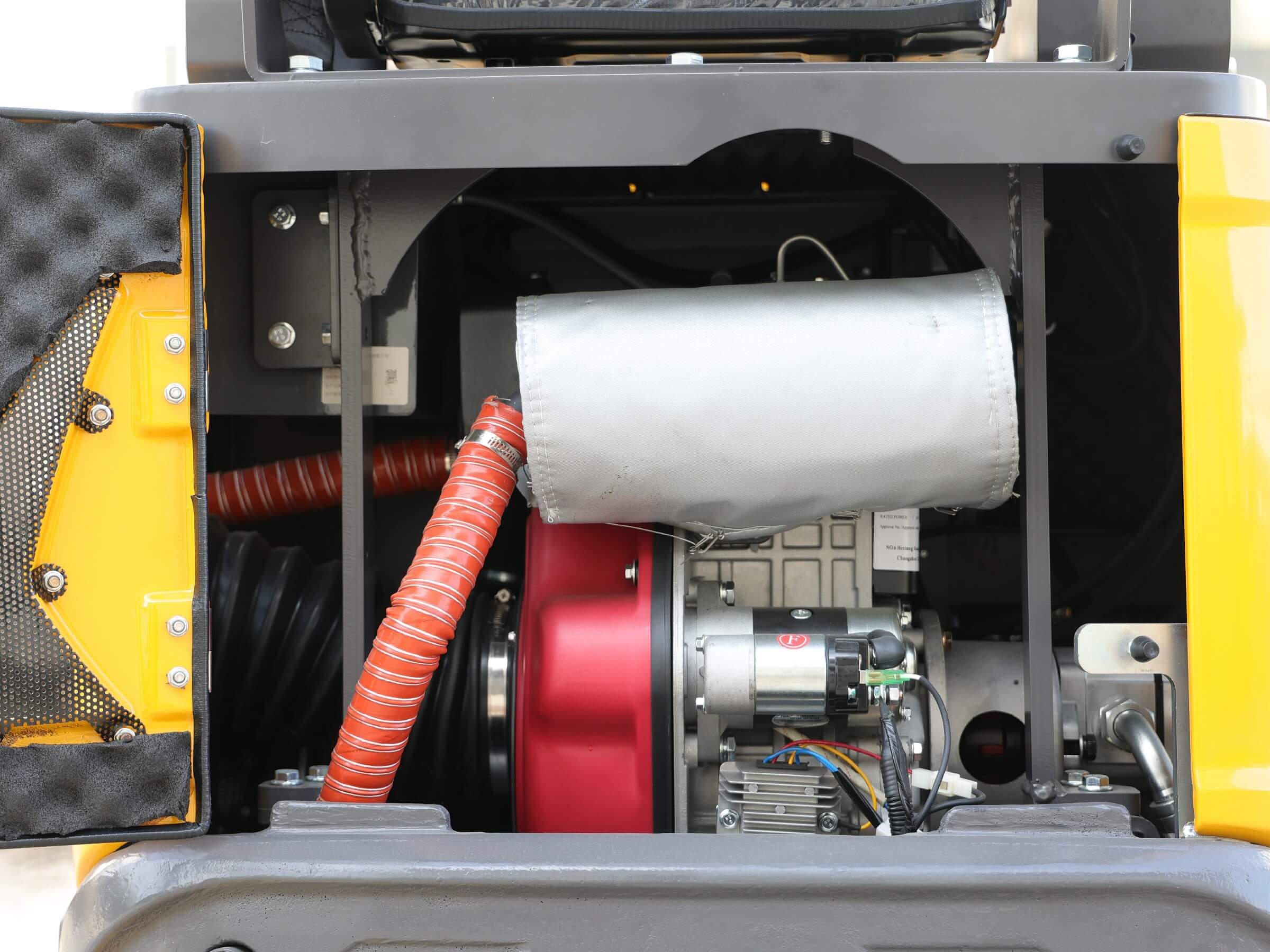

Simple and reliable

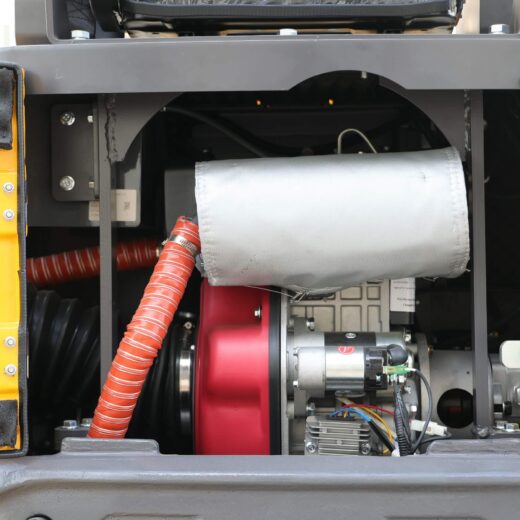

Smart design allows quick access to the engine and key components, simplifying regular checks and servicing. Maintenance is quick and clear, reducing potential work stoppages. Durable construction and thoughtful system layout ensure safe and reliable operation in all conditions.
