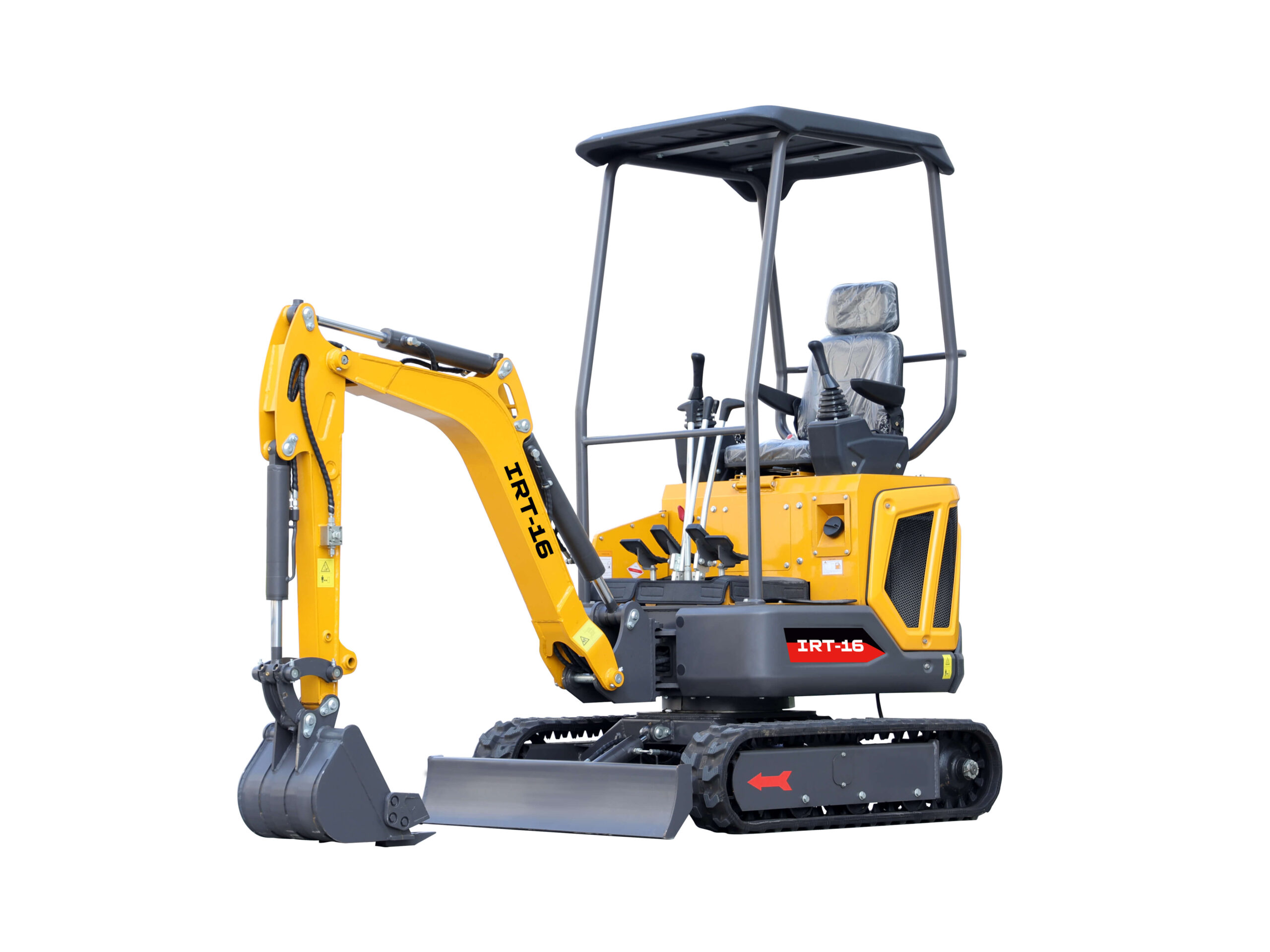

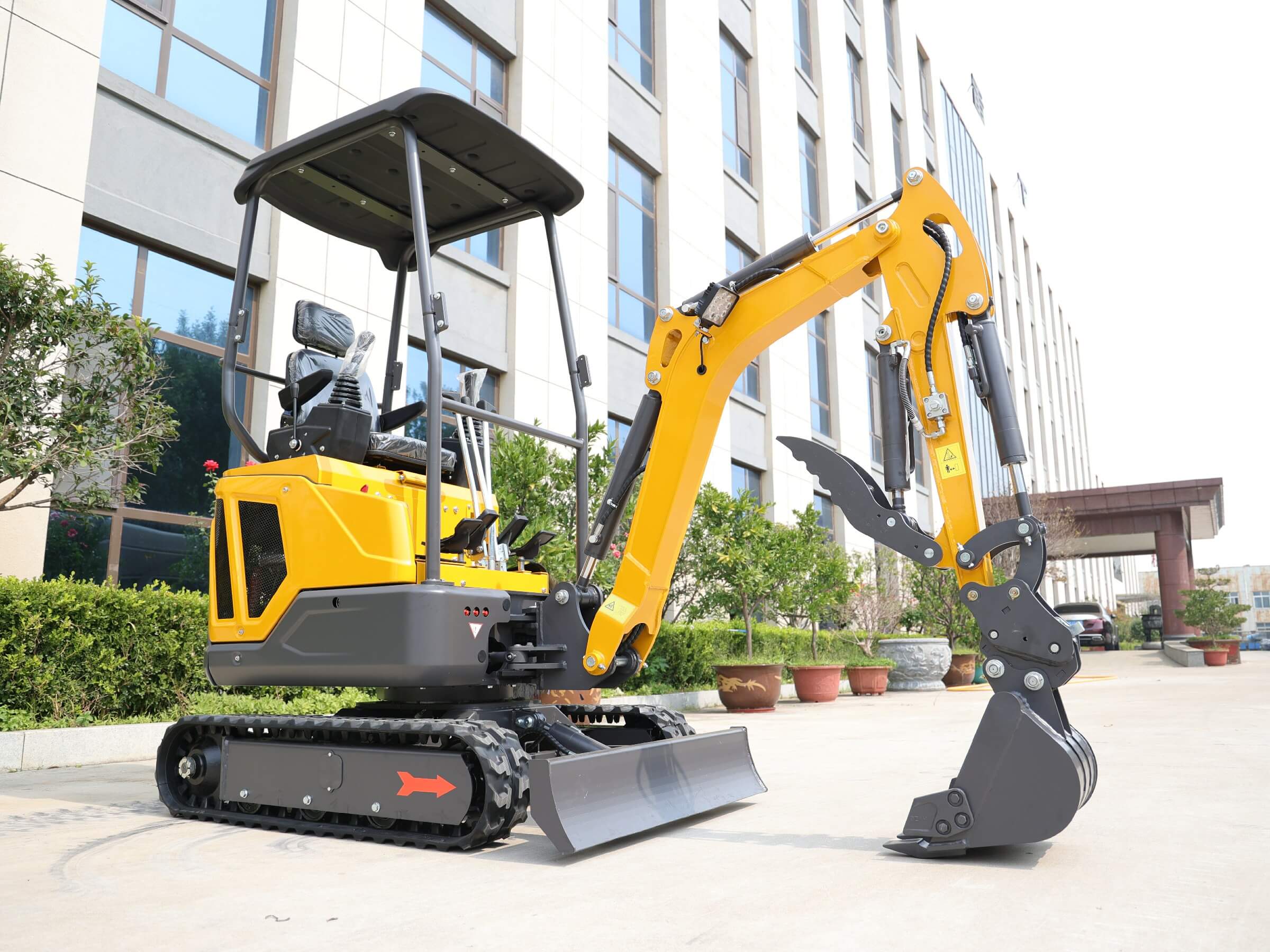

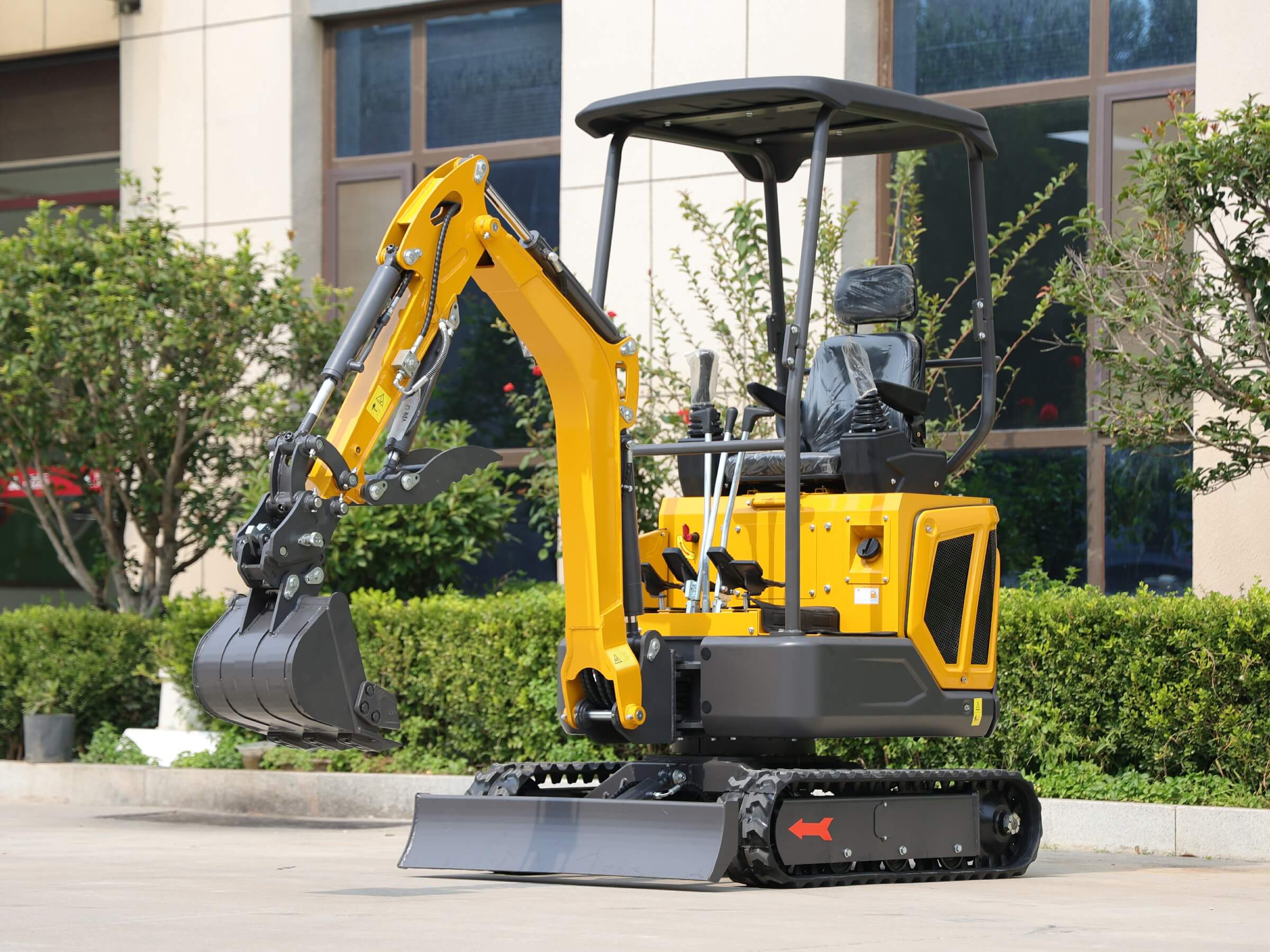

Mini excavator IRT16 – 1600kg

In stock

IRT-16 is a powerful mini excavator weighing 1600 kg, designed for more demanding construction work and daily professional use. Powered by a diesel engine LAIDONG KM385B (3-cylinder) with a power of 18,1 kW (2600 rpm) and a displacement of 719 cc. Hydraulic system with two gear pumps (31,2 + 7,8 L/min) and an operating pressure of 16 MPa enables powerful and precise control. With a digging reach of 3420 mm, a depth of 1780 mm, and a turning radius of 1350 mm, it performs excellently even in confined spaces. (2600 rpm) and a displacement of 719 cc. Hydraulic system with two gear pumps (31,2 + 7,8 L/min) and an operating pressure of 16 MPa enables powerful and precise control. With a digging reach of 3420 mm, a depth of 1780 mm, and a turning radius of 1350 mm, it performs excellently even in confined spaces.

With the purchase, you receive FREE: Excavator bucket 40cm + Quick coupler

Delivery options
Delivery options

We can organize delivery through our trusted and reliable delivery partners.

Price: £9,200.00 + VAT

Purchase on installments
RELIABLE SERVICE
WARRANTY WITH PURCHASE
SPARE PARTS FOR ALL MACHINES
PROFESSIONAL ASSISTANCE AND CONSULTING
Working weight 1600 kg
Engine model LAIDONG KM385BB
Engine type 3-cylinder diesel
Engine power 18,1 kW / 2600 rpm
Engine displacement 0,719 L
Driving speed up to 2 km/h km/h
The speed of cabin rotation 10 rpm
Maximum climbing ability 30°
Pressure on the ground 0,3 kgf/cm²
Caterpillar material tire
Track tensioning tip grease cylinder
Pump type 10 + 3 gear pumps
Working pressure 16 MPa
Flow of hydraulic fluid 31,2 + 7,8 L/min
Capacity of the hydraulic reservoir 21 L
Fuel tank capacity 14 L
The largest digging radius on the ground 3380 mm
The greatest depth of digging 3420 mm
The greatest digging depth 1780 mm
The greatest digging depth 2970 mm
Maximum unloading height 2030 mm
The greatest vertical digging depth 1550 mm
Minimum turning radius 1350 mm
The maximum lifting height of the dozer blade 150 mm
The maximum depth of digging with a dozer blade 220 mm



  • Laidong KM385B diesel engine (18,1 kW)
  • Rotation 360°°
  • Double gear hydraulic pump
  • Rubber tracks – suitable for asphalt, concrete, tiles
  • Dozer board

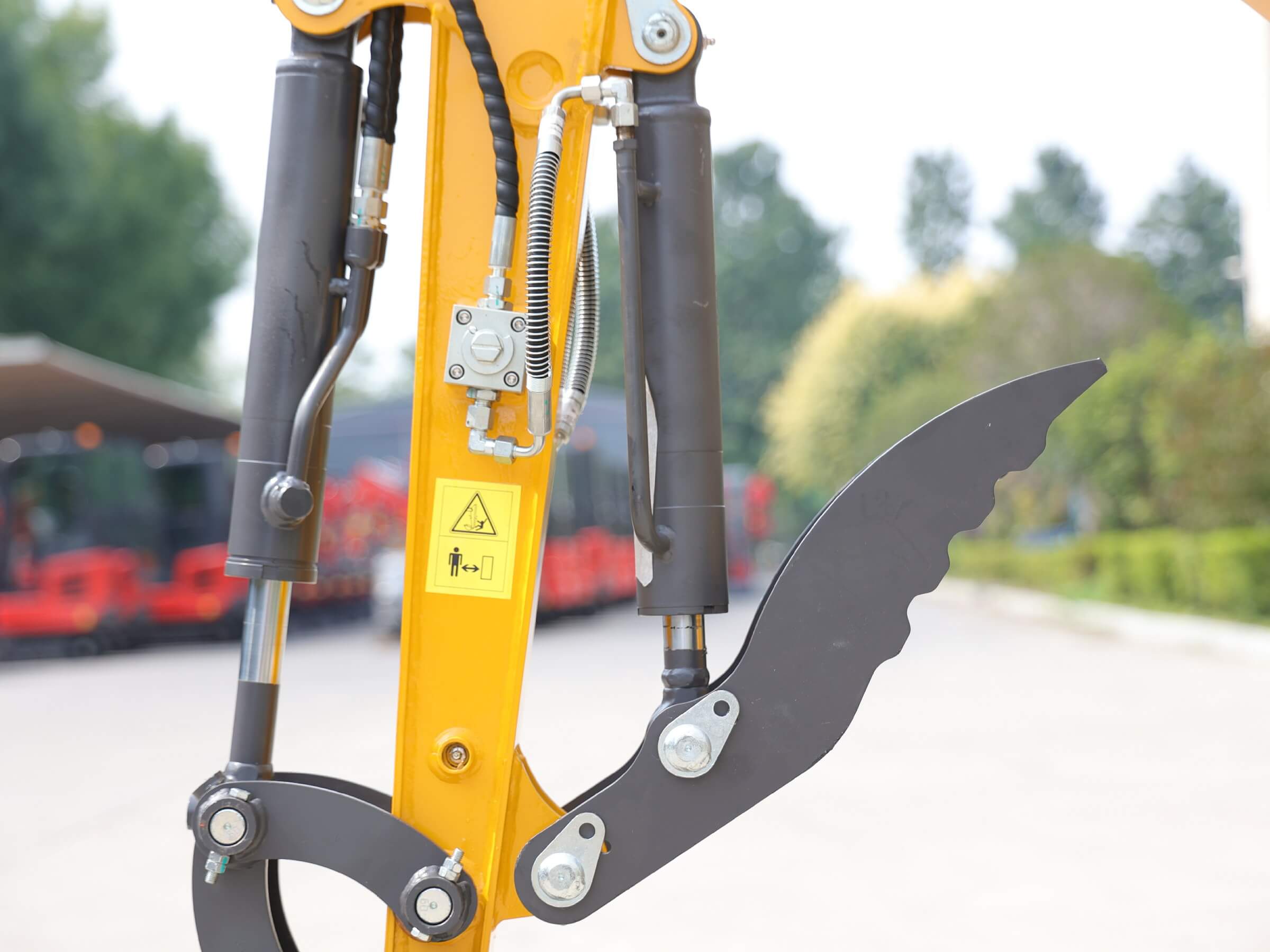

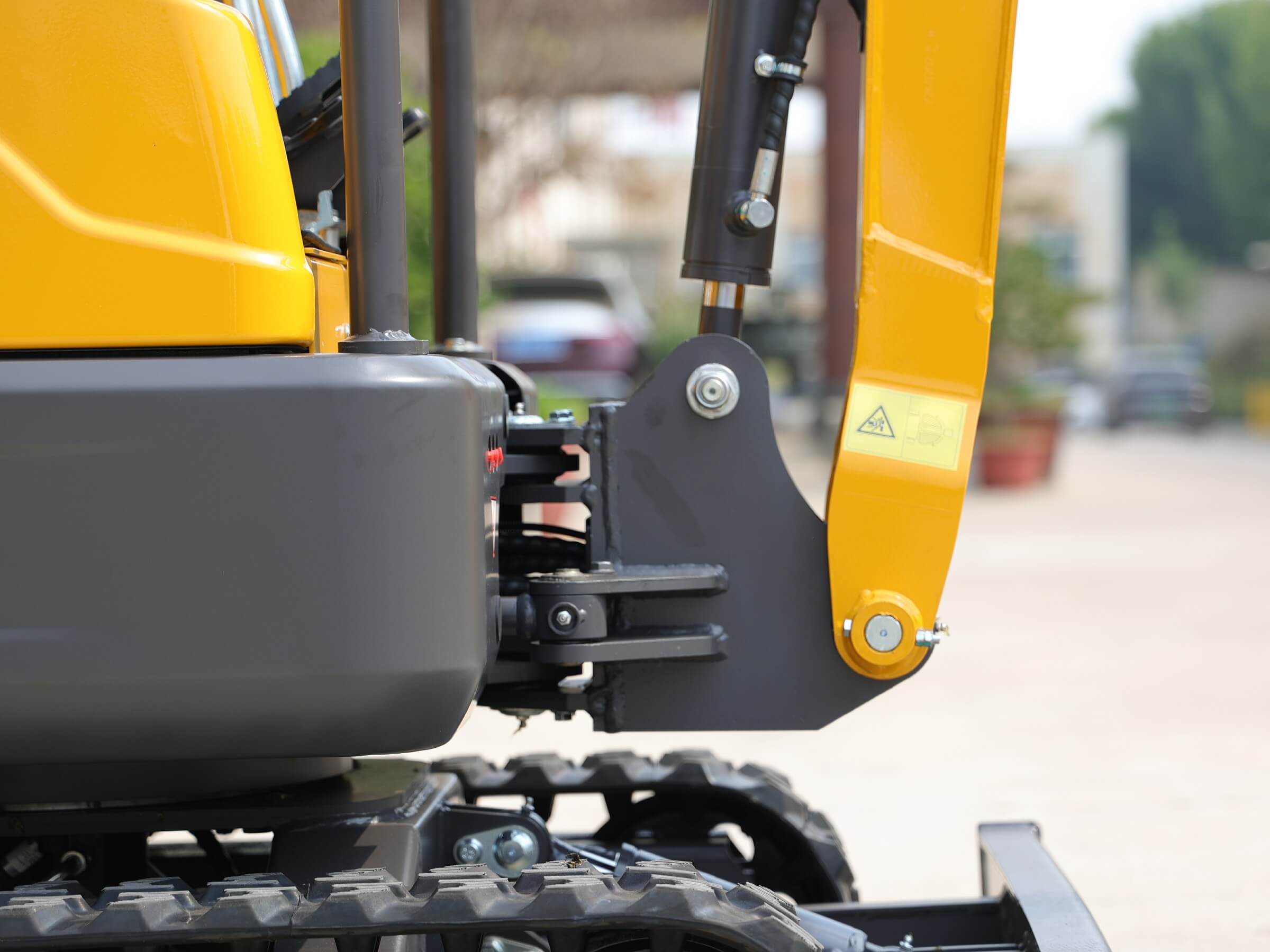

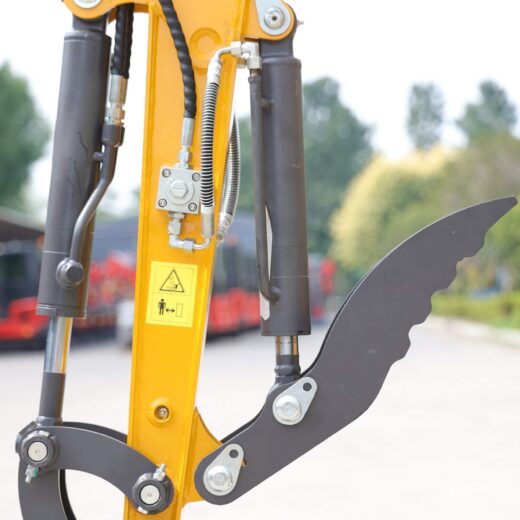

  • Hydraulic arm with a single cylinder
  • Spacious enclosed cabin with a flat floor

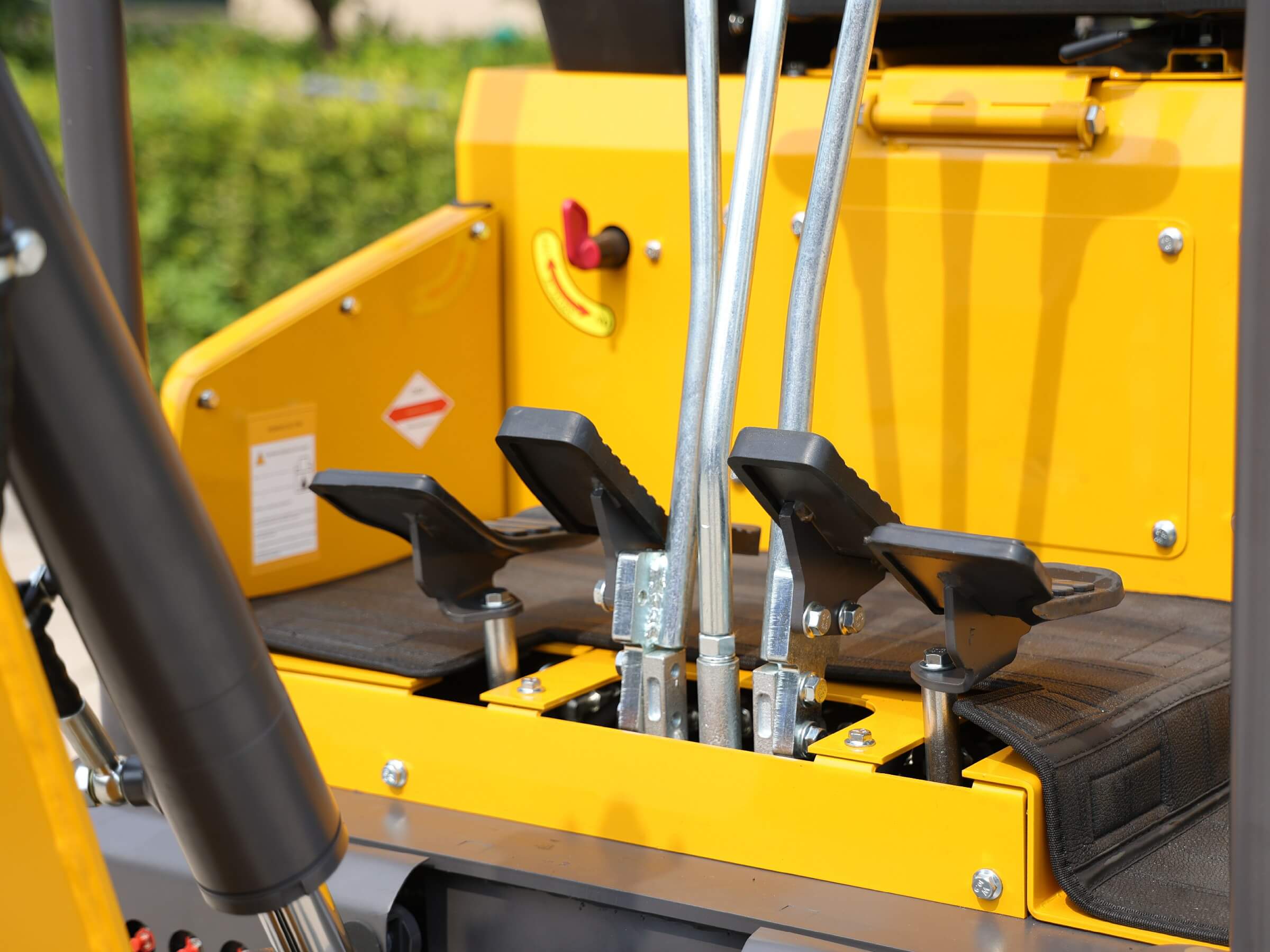

  • Ergonomic control handles (hydraulic pilot system)
  • Hour meter, light switch
  • Digital water temperature gauge
  • Digital display of electrical voltage (voltmeter)
  • Seat belt

Dimensions

A – Wheelbase: 1084 mm
B – Total track length: 1392 mm
C – Ground clearance: 400 mm
D – Rear turning radius: 824 mm
E – Chassis width: 1100 mm
F – Track width: 180 mm
G – Track height: 320 mm
H – Transport length: 2270 / 3060 mm
I – Seat height from ground: 1610 mm
J – Total height: 2270 mm
M – Arm swing to the right: 46°
N – Arm swing to the left: 44° mm Seat height from ground: 1610 mm Total height: 2270 mm Arm swing to the right: 46° Arm swing to the left: 44°

Compact, powerful, and efficient

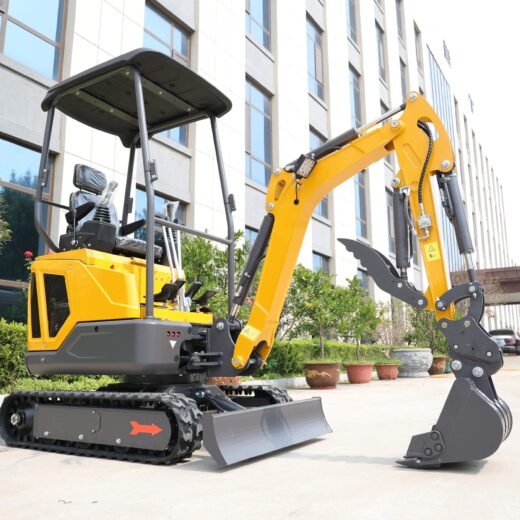

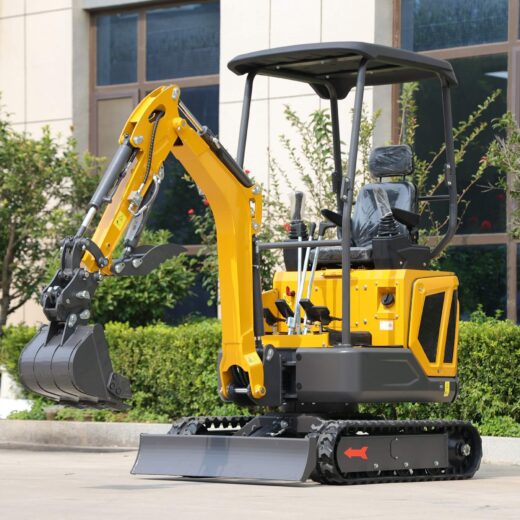

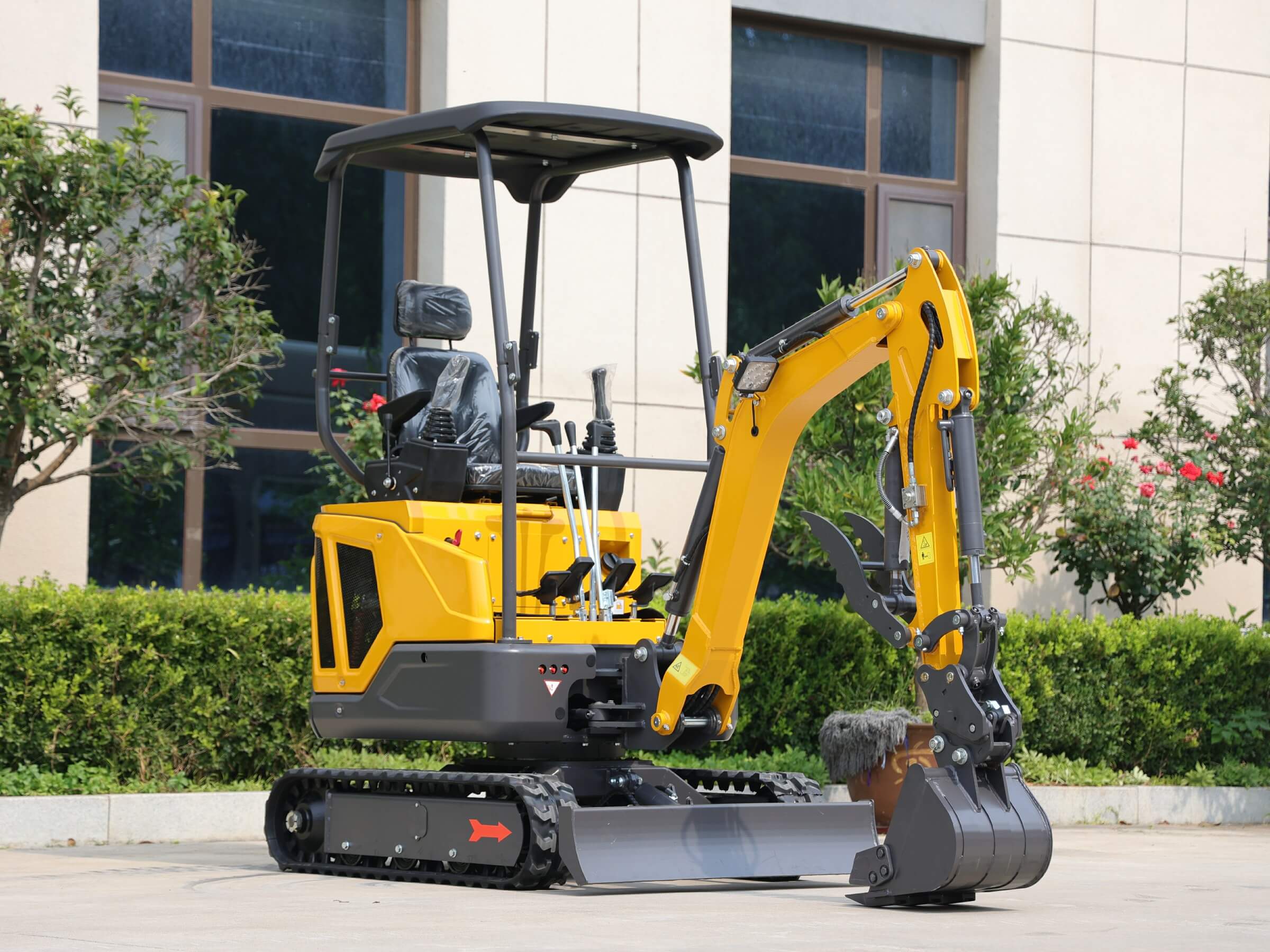

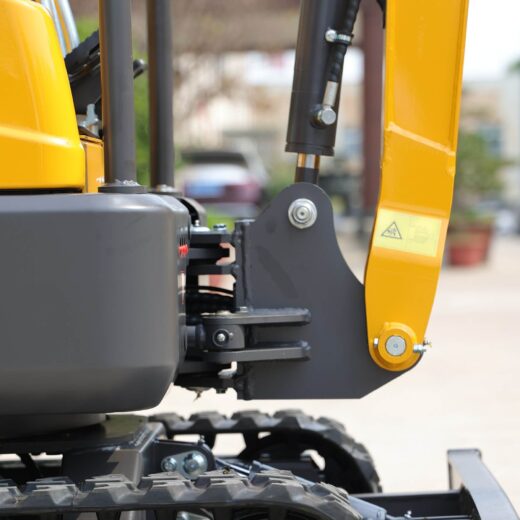

The compact machine combines high digging power, an advanced hydraulic system, and stability with an undercarriage width of 1100 mm. Thanks to the 360° rotation, rubber tracks, and the arm’s lateral tilt, it performs excellently even in very confined spaces. The control console, dozer blade, and adjustable undercarriage enhance the machine’s adaptability for a wide range of field and construction tasks.

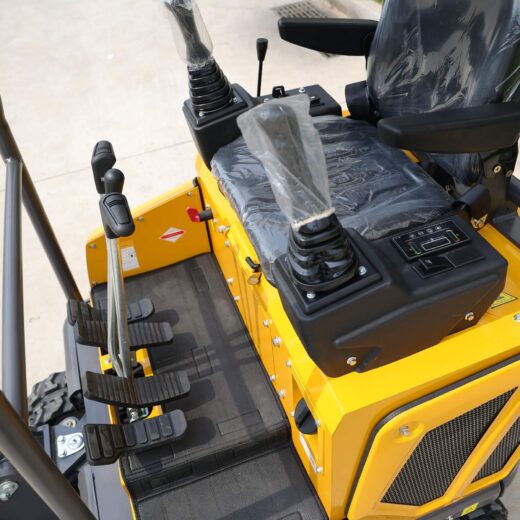

Spacious and comfortable cabin

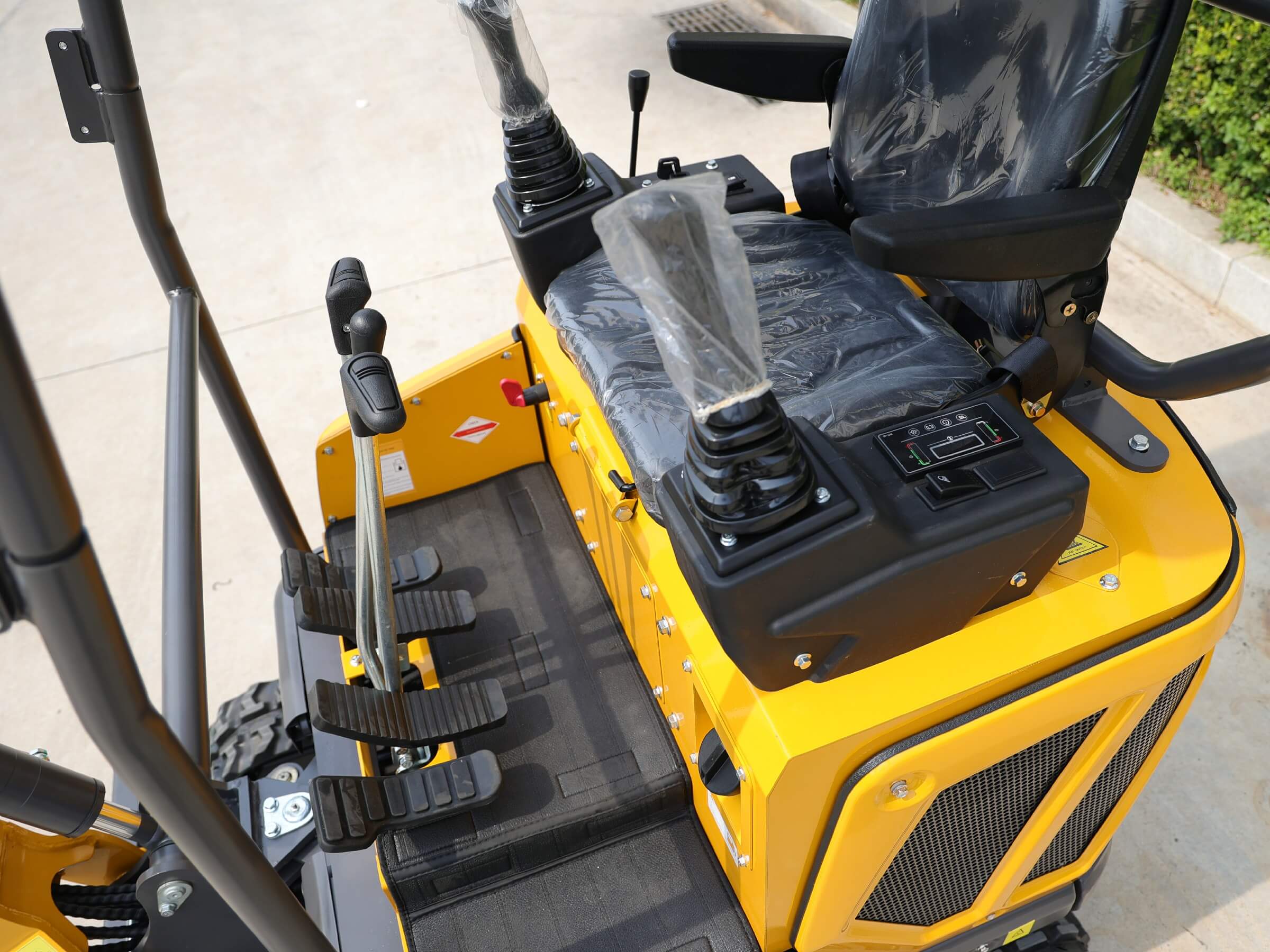

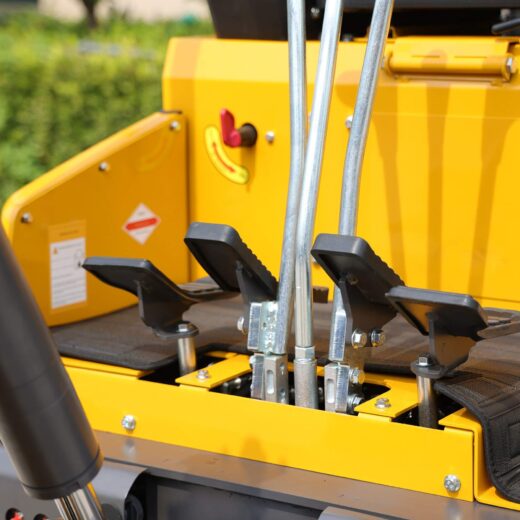

The IRT-16 cabin is spacious, with a flat floor and adjustable seat for greater comfort. The electronic control panel displays key information such as operating hours, voltage, and engine temperature. Ergonomic hydraulic handles allow for precise control, while the switches ensure quick start and lighting control.

Simple and reliable

Smart design allows quick access to the engine and key components, simplifying regular checks and servicing. Maintenance is quick and clear, reducing potential work stoppages. Durable construction and thoughtful system layout ensure safe and reliable operation in all conditions.
