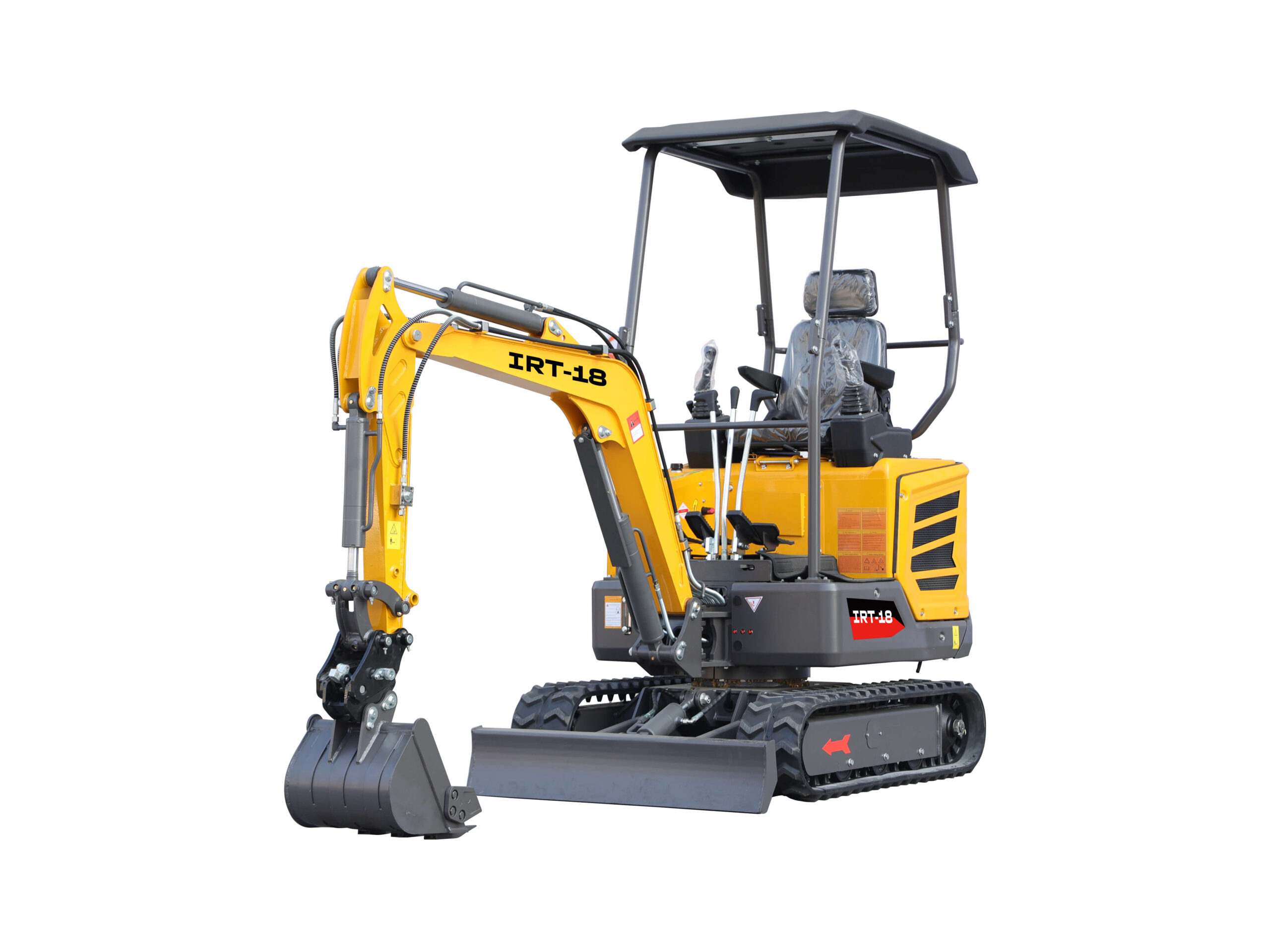

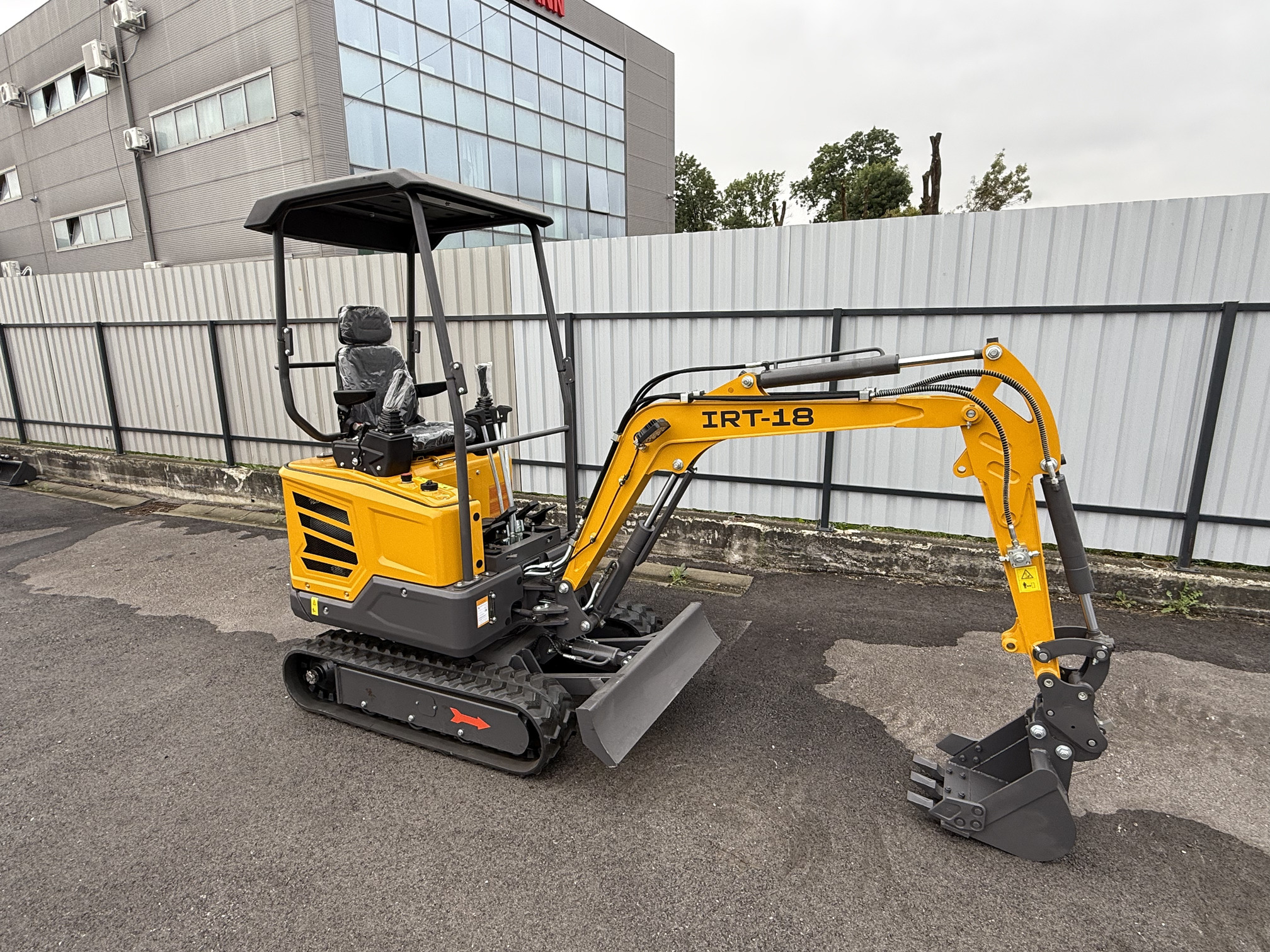

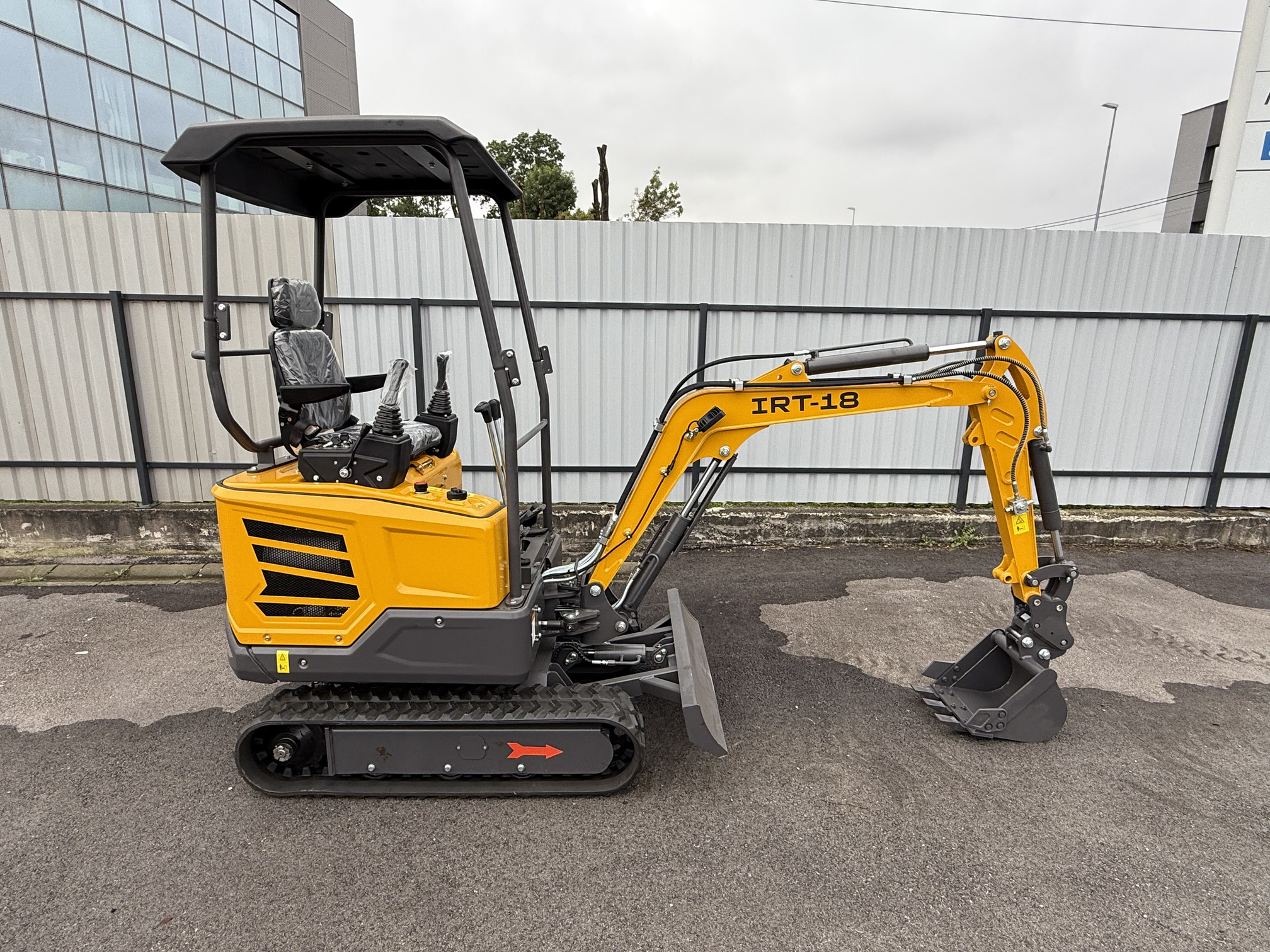

Mini excavator IRT18 – 1800kg

In stock

IRT-18 is a reliable mini excavator weighing 1800 kg, designed for efficient execution of demanding excavations and work on various terrains. It is powered by a diesel engine Laidong KM385B (3-cylinder) with a power of 18,1 kW (2600 rpm). Two gear pumps (31,2 + 7,8 L/min) in combination with an operating pressure of 16 MPa enable powerful and precise operation. With a digging depth of 2170 mm, a reach of 3470 mm, and the ability to climb up to 30°, it is suitable for a wide range of tasks on construction sites and hard-to-reach terrains.

With the purchase, you receive FREE: Excavator bucket 40cm + Quick coupler

Delivery options
Delivery options

We can organize delivery through our trusted and reliable delivery partners.

Price: £10,400.00 + VAT

Purchase on installments
RELIABLE SERVICE
WARRANTY WITH PURCHASE
SPARE PARTS FOR ALL MACHINES
PROFESSIONAL ASSISTANCE AND CONSULTING
Working weight 1800 kg
Engine model LAIDONG KM385BB
Engine type 3-cylinder diesel
Engine power 18,1 kW / 2600 rpm
Engine displacement 0,719 L
Driving speed up to 2 km/h km/h
The speed of cabin rotation 10 rpm
Maximum climbing ability 30°
Pressure on the ground 0,3 kgf/cm²
Material tire
Track tensioning tip grease cylinder
Pump type gear pumps
Working pressure 16 MPa
Flow of hydraulic fluid 31,2 + 7,8 L/min
Capacity of the hydraulic reservoir 21 L
Fuel tank capacity 14 L
The largest digging radius on the ground 3410 mm
The greatest depth of digging 3470 mm
The greatest digging depth 2170 mm
The greatest digging depth 3010 mm
Maximum unloading height 2135 mm
The greatest vertical digging depth 2085 mm
Minimum turning radius 1505 mm
The maximum lifting height of the dozer blade 150 mm
The maximum depth of digging with a dozer blade 290 mm
  • Engine: Laidong KM385B (18,1 kW)
  • Option to choose engine: Kubota (10,2 kW)
  • Cabin rotation 360°°

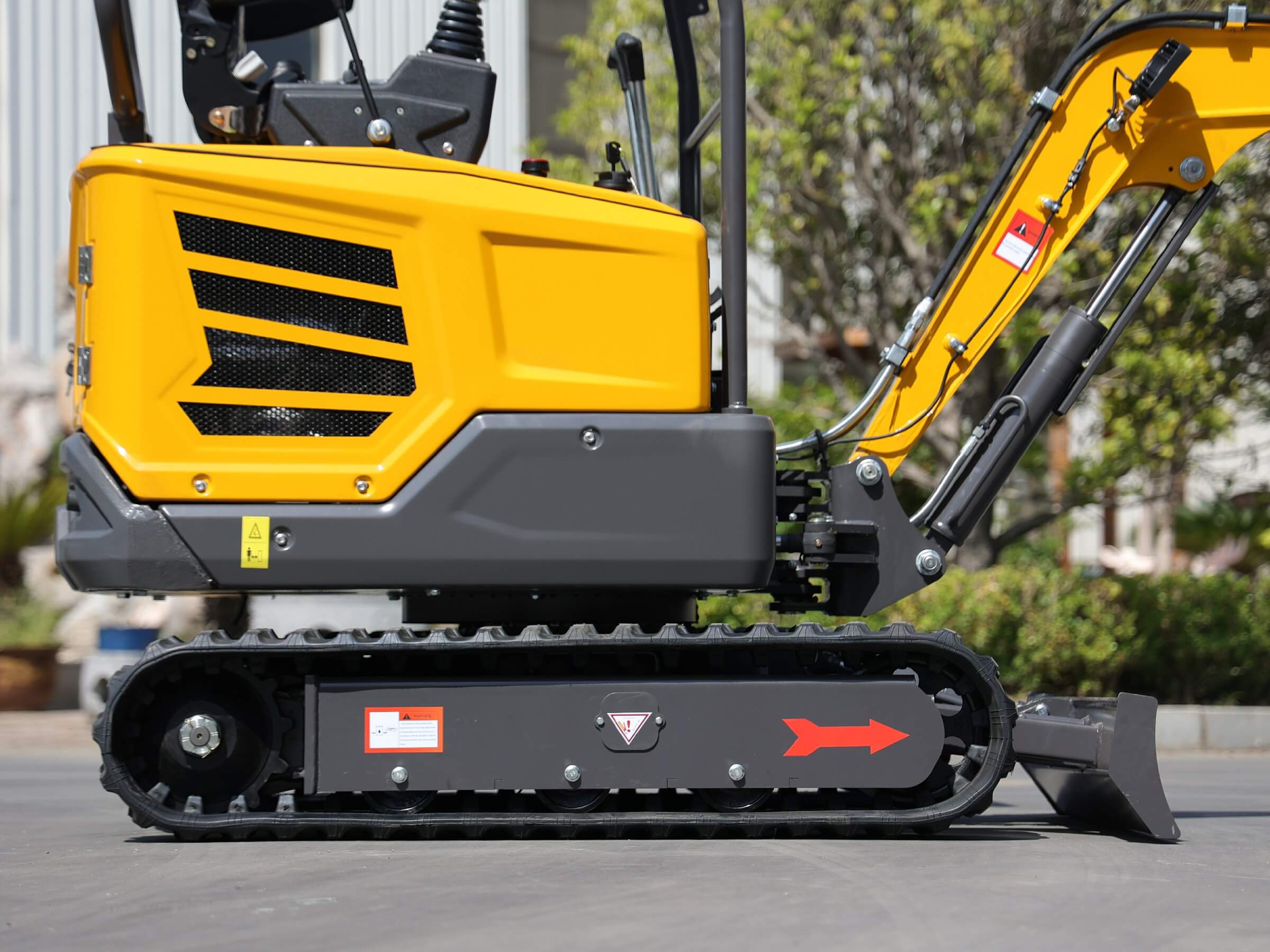

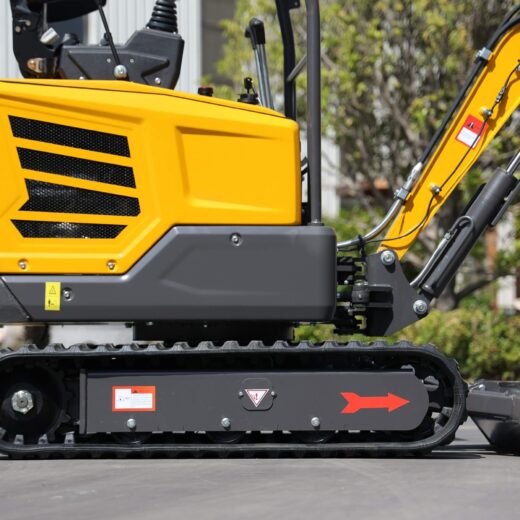

  • Rubber tracks
  • Dozer blade
  • Function of arm rotation (boom swing) – left 43°, right 48°
  • Comfortable cabin with adjustable seat
  • Hydraulic pilot joystick
  • Hour meter for monitoring machine wear
  • Digital display of coolant temperature
  • Digital display of battery voltage
  • Work light switch
  • Operator safety belt

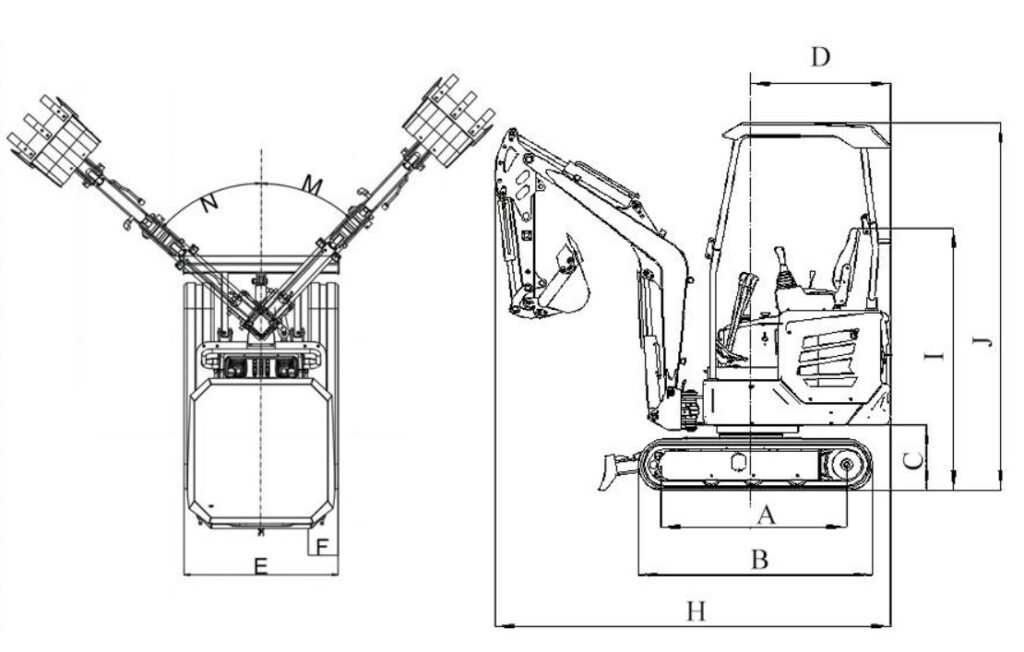

Dimensions

A – Wheelbase: 1120 mm
B – Total track length: 1440 mm
C – Ground clearance of platform: 400 mm
D – Rear turning radius: 860 mm
E – Chassis width: 1100 mm
F – Track width: 230 mm
G – Track height: 320 mm
H – Transport length: 2430 / 3240 mm
I – Seat height from ground: 1610 mm
J – Total height: 2270 mm
M – Arm swing to the right: 48°
N – Arm swing to the left: 43°

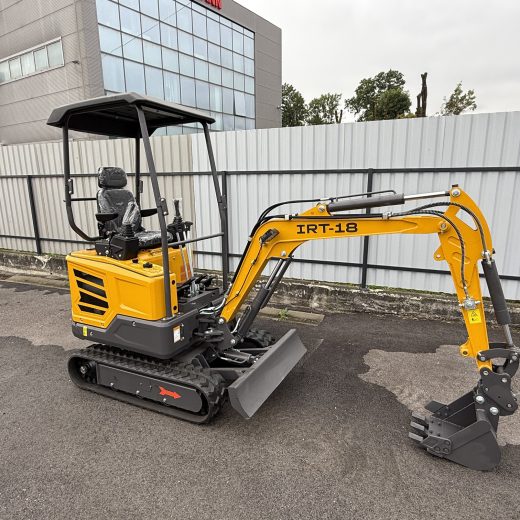

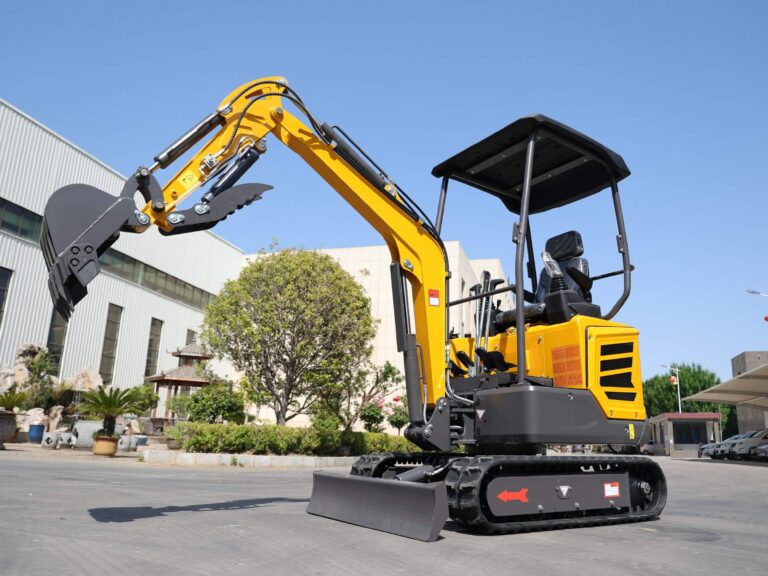

Compact, powerful, and efficient

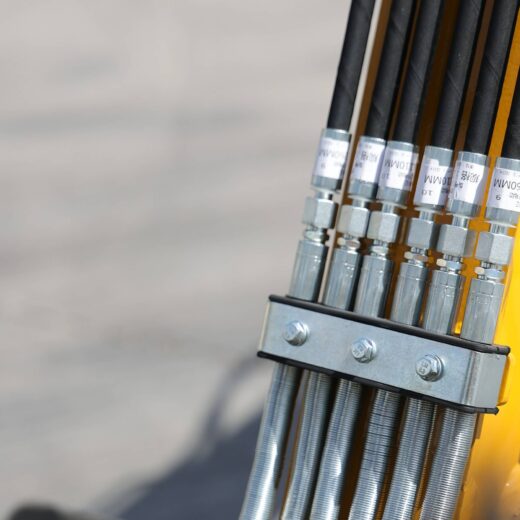

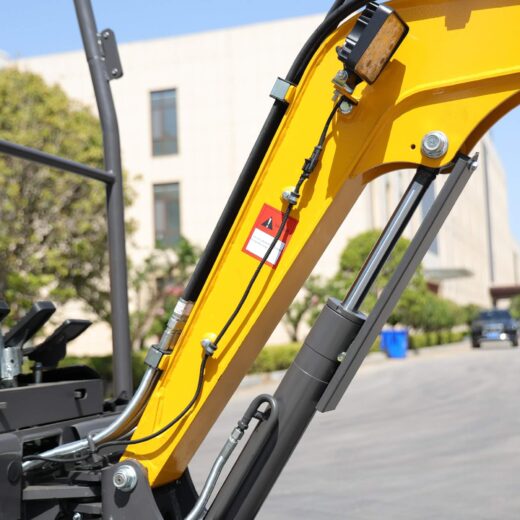

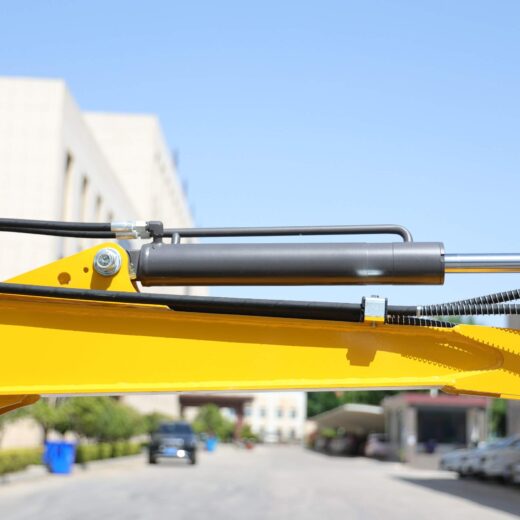

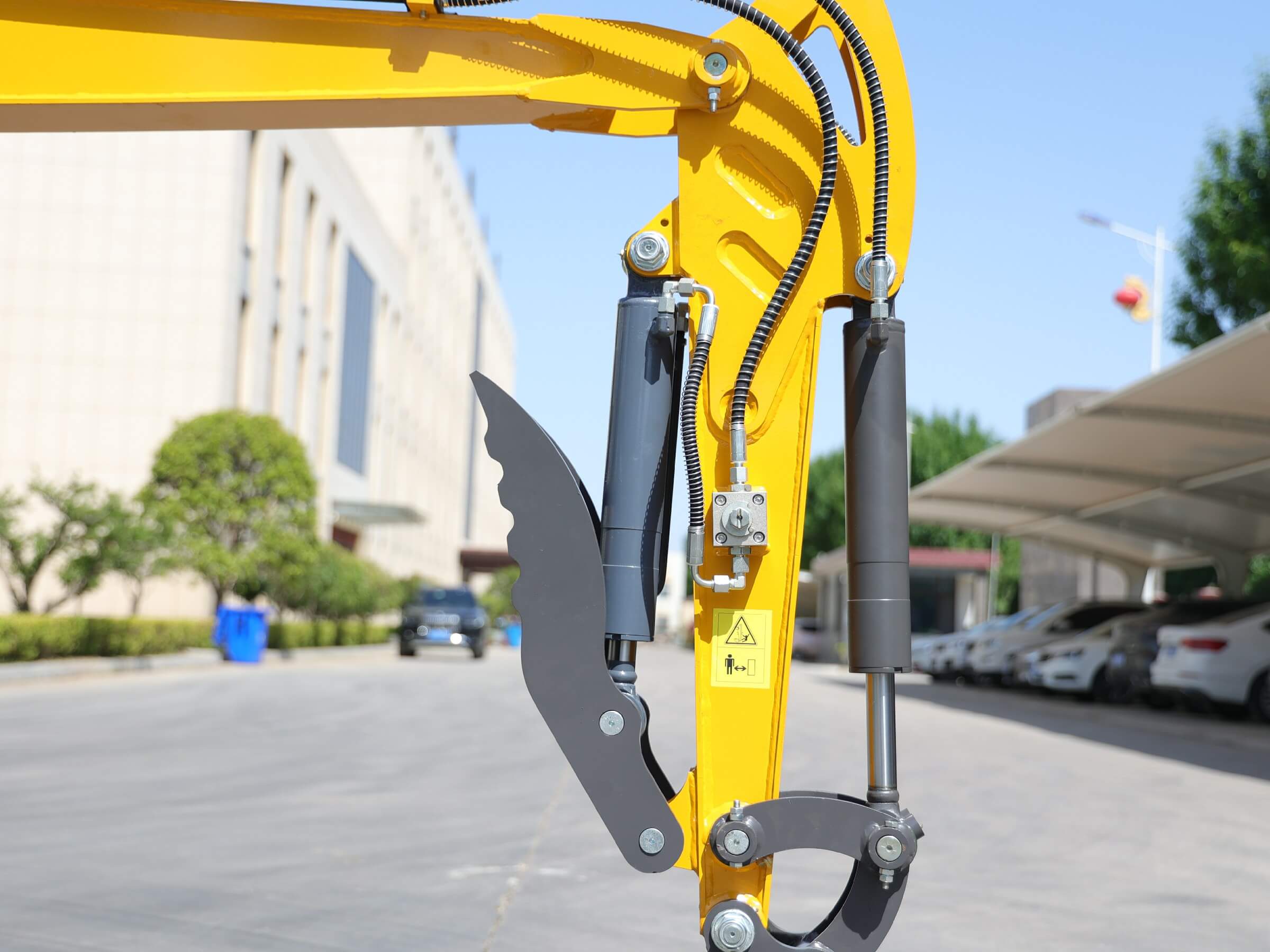

This machine combines high digging power, an advanced hydraulic system, and a stable chassis width of 1000 mm. 360° rotation, rubber tracks, and lateral arm movement (43° to the left, 48° to the right) enable efficient operation even in tight spaces. The control console, dozer blade, and adjustable undercarriage further enhance the machine’s versatility on various terrains – from urban environments to challenging construction sites.

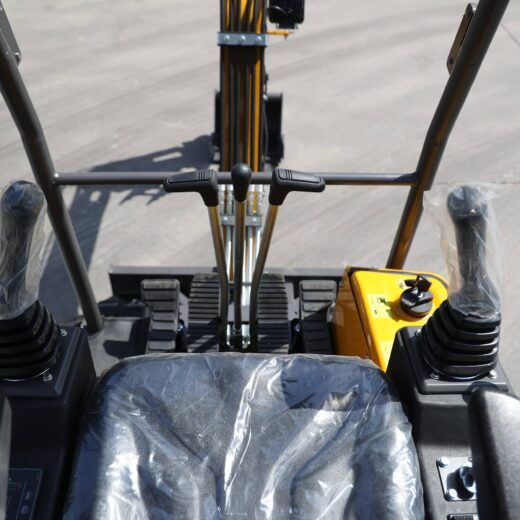

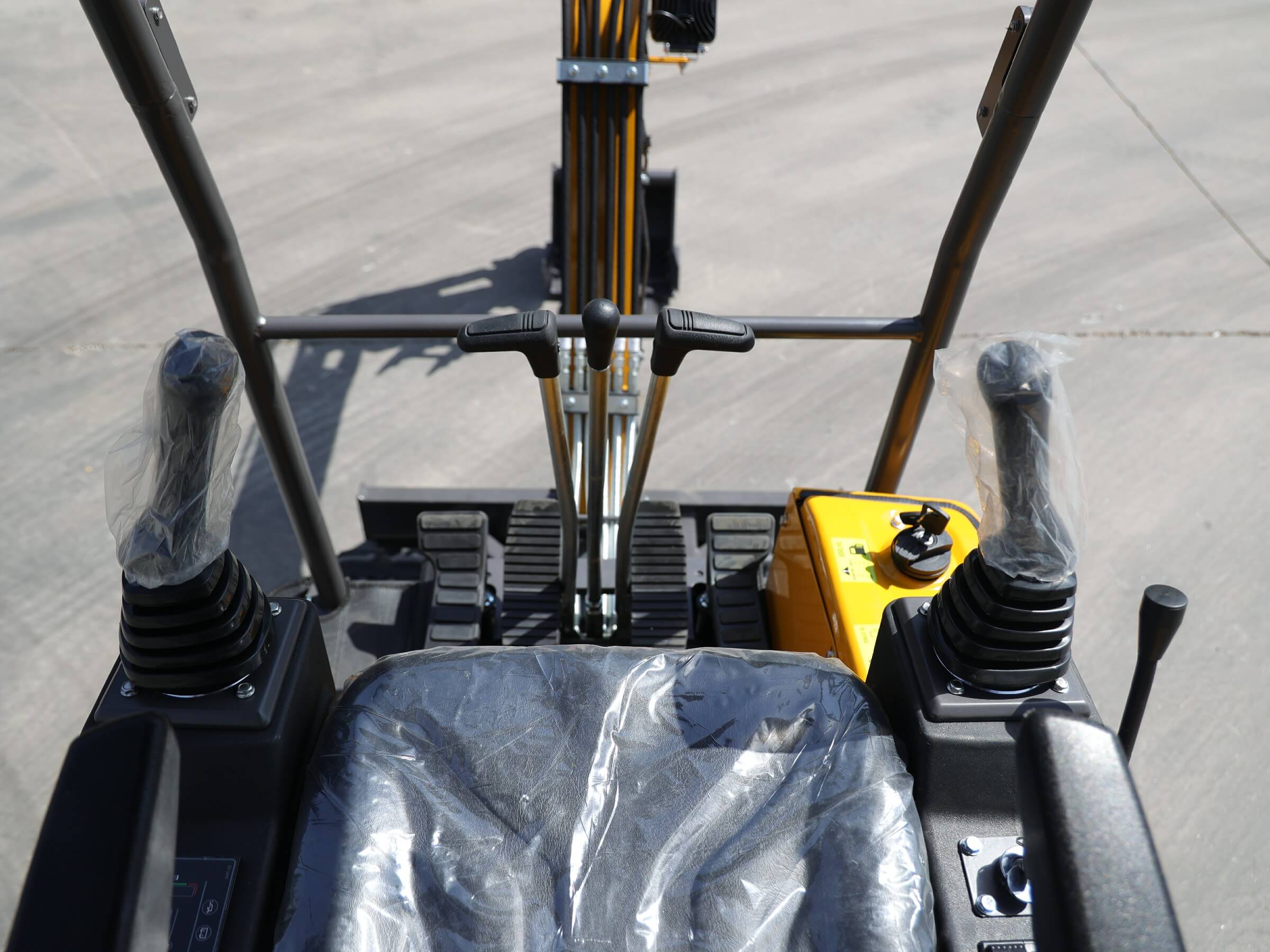

Spacious and comfortable cabin

The cabin offers more space, a flat floor, and a wide entrance, which allows for comfortable access and greater mobility during work. The overview dashboard displays key information – operating hours, engine temperature, voltage status, and energy consumption. All controls are arranged ergonomically, allowing for easy and safe operation. Hydraulic levers with precise response, a comfortable seat, and logically positioned buttons ensure an efficient working experience even during longer work intervals.

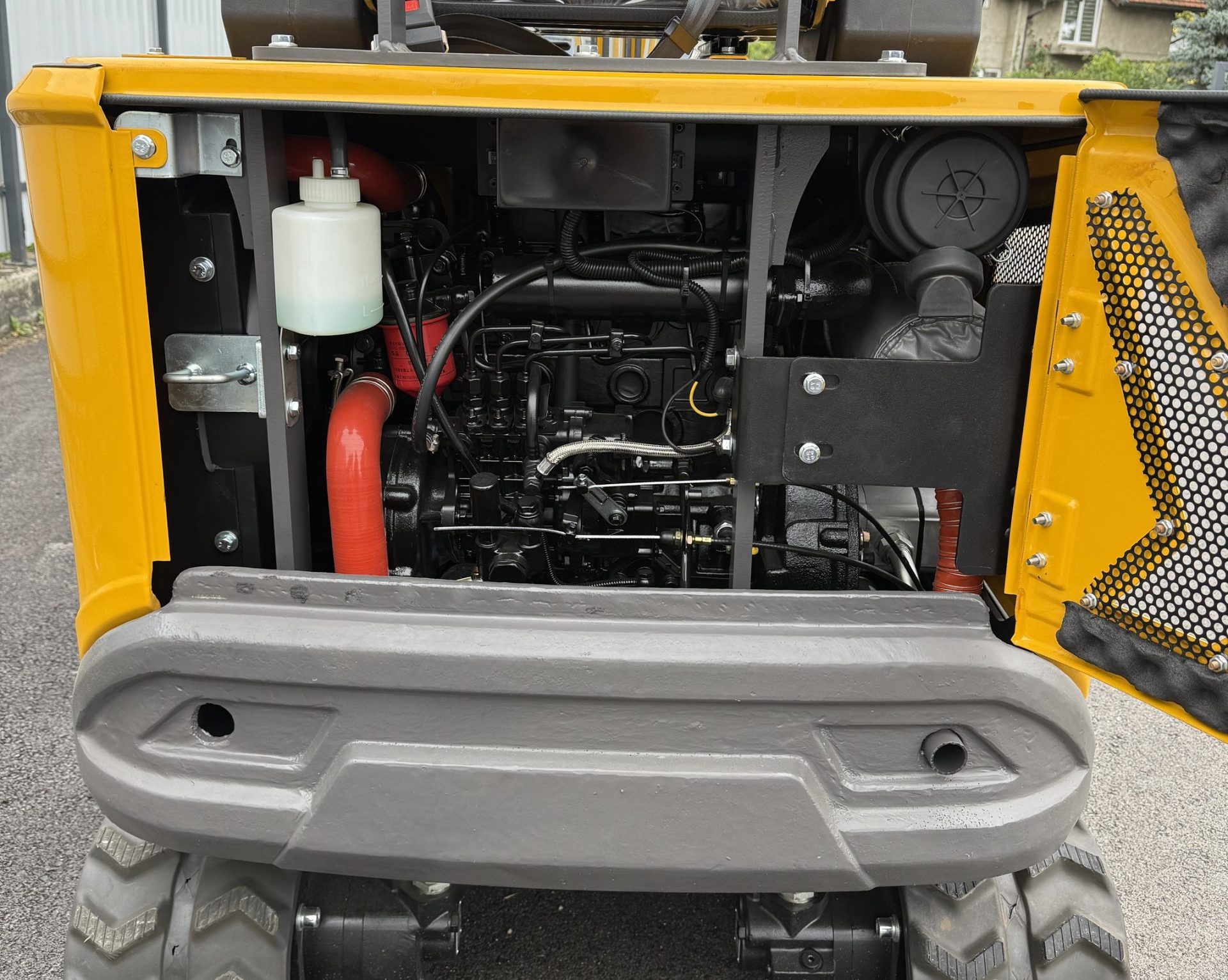

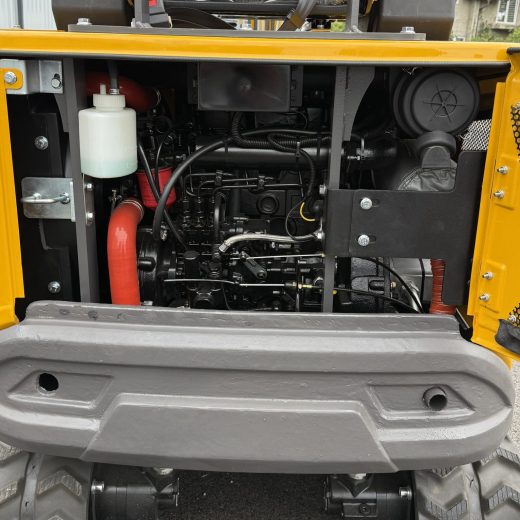

Simple and reliable

Smart design allows quick access to the engine and key components, simplifying regular checks and servicing. Maintenance is quick and clear, reducing potential work stoppages. Durable construction and thoughtful system layout ensure safe and reliable operation in all conditions.
