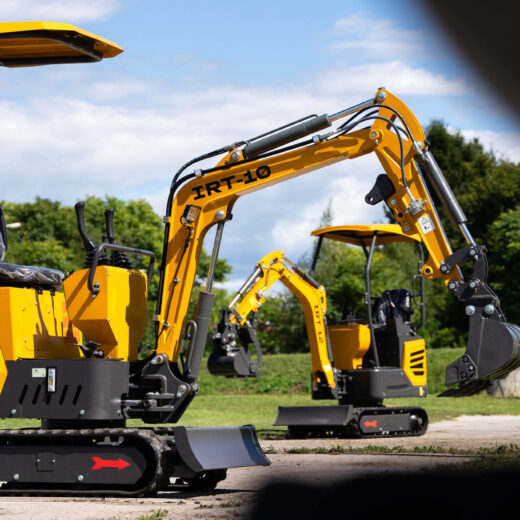

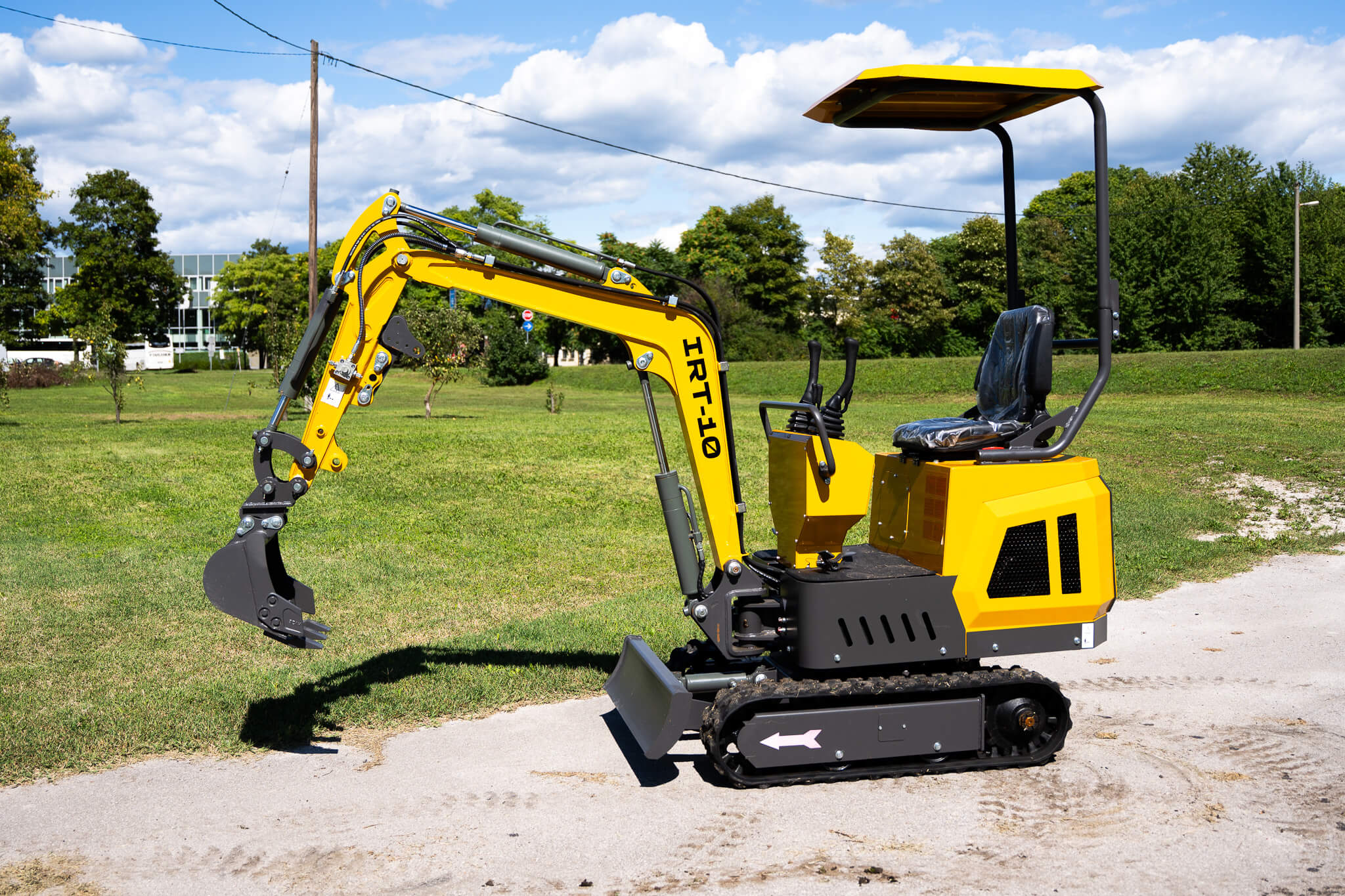

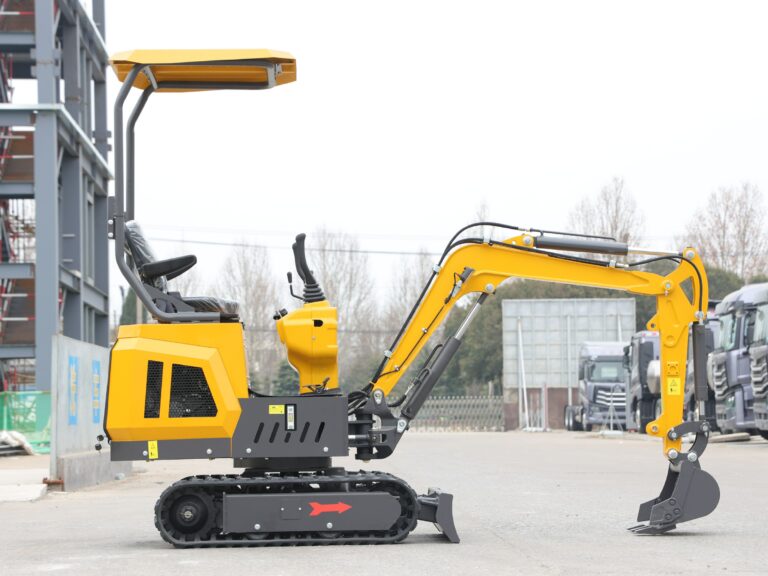

Mini excavator IRT10 – 1000kg

In stock

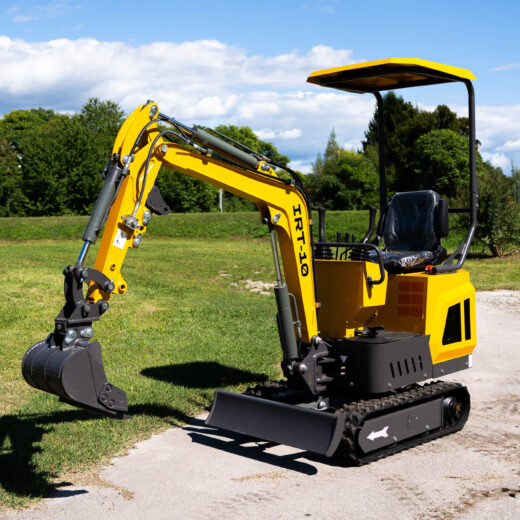

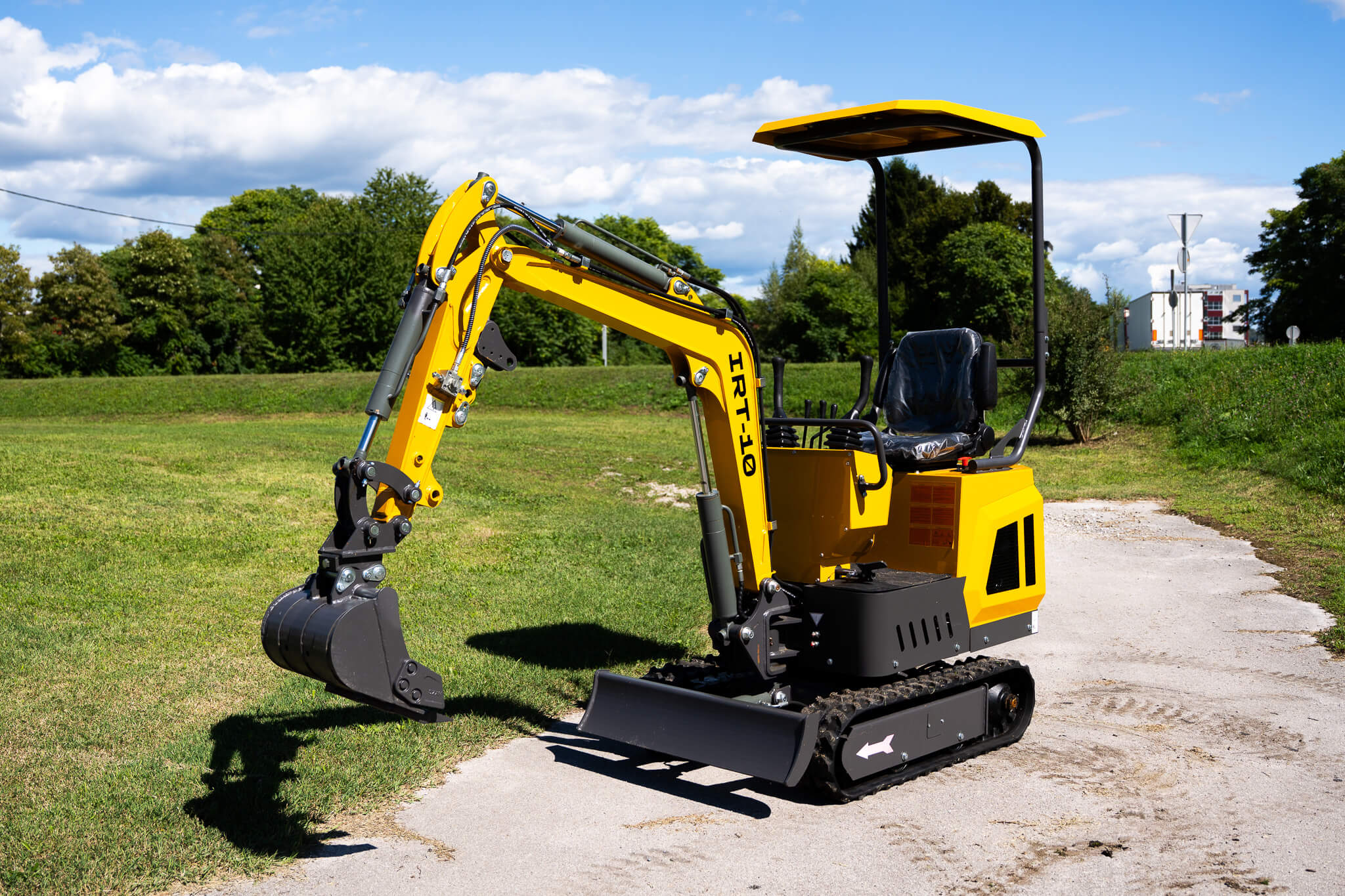

IRT10 is a versatile 1000-kilogram mini excavator, designed for reliable operation in tight spaces, on construction sites, or for home projects. Powered by a reliable diesel engine KOOP KD192F with a power of 7.6 kW (3000 rpm) and a displacement of 499 cc, which, in combination with a gear pump and a working pressure of 16 MPa, ensures an efficient hydraulic system with a flow rate of 18 L/min. IRT10 achieves a maximum digging force of 6.5 kN and allows precise control even on challenging terrains with slopes up to 30°.

With the purchase, you receive FREE: Excavator bucket 40cm + Quick coupler

Delivery options
Delivery options

We can organize delivery through our trusted and reliable delivery partners.

Price: £5,900.00 + VAT

Purchase on installments
RELIABLE SERVICE
WARRANTY WITH PURCHASE
SPARE PARTS FOR ALL MACHINES
PROFESSIONAL ASSISTANCE AND CONSULTING
Working weight 1000 kg
Engine model KOOP KD192F
Engine type 1-cylinder diesel
Engine power 7,6 kW / 3000 rpm
Engine displacement 499 cc
Driving speed up to 1,2 km/h
The speed of cabin rotation 9 rpm
Maximum climbing ability 30°
Maximum digging force 6,5 kN
Pressure on the ground 0,3 kgf/cm²
Caterpillar material tire
Track tensioning tip Mechanical tension
Pump type gear pump
Working pressure 16 MPa
Flow of hydraulic fluid 18 L/min

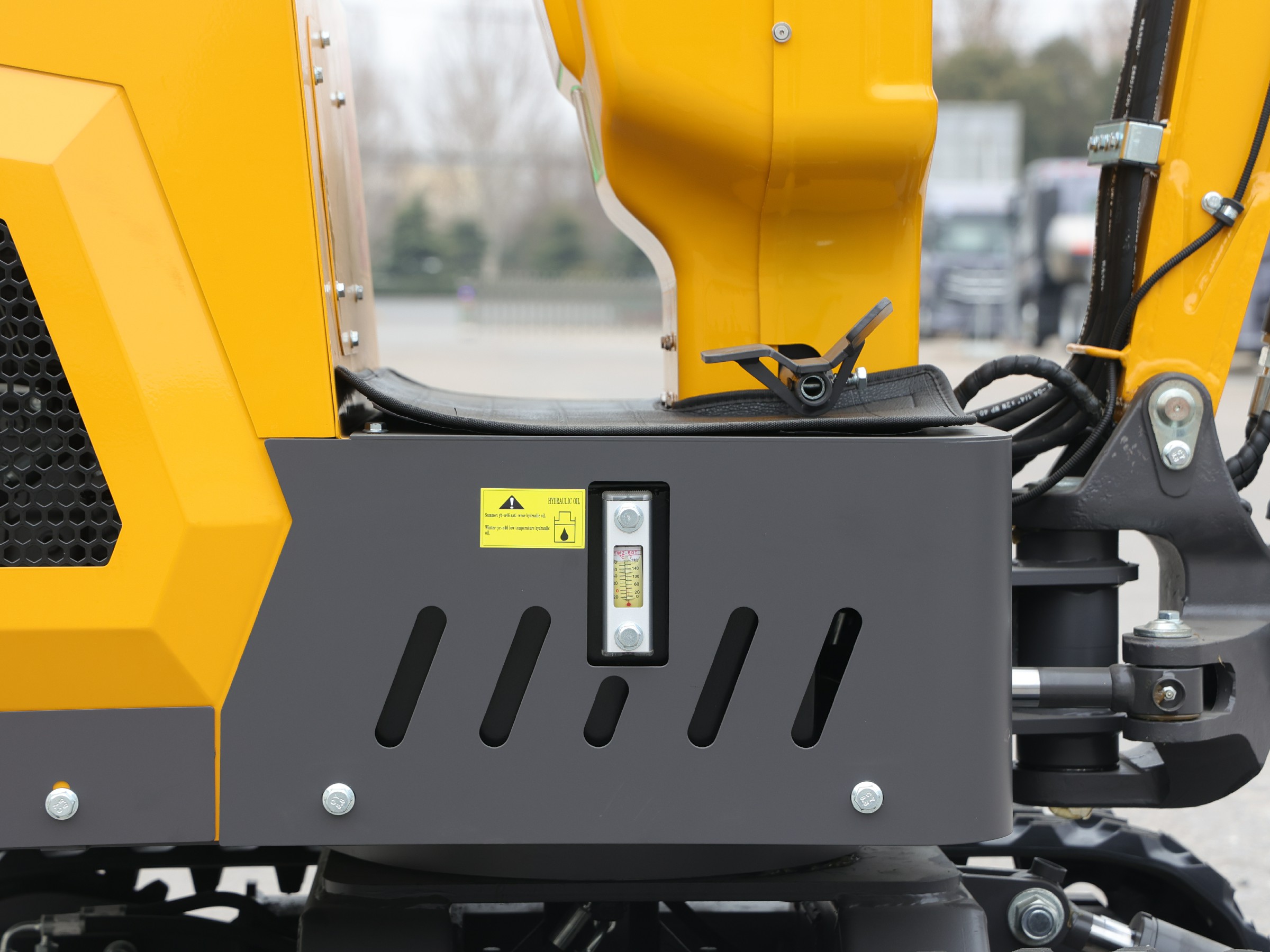

Capacity of the hydraulic reservoir 13 L
Fuel tank capacity 5,5 L
The largest digging radius on the ground 2940 mm
The greatest depth of digging 3030 mm
The greatest digging depth 1725 mm
The greatest digging depth 2490 mm
Maximum unloading height 1745 mm
The greatest vertical digging depth 1655 mm
Minimum turning radius 1490 mm
The maximum lifting height of the dozer blade 170 mm
The maximum depth of digging with a dozer blade 240 mm
  • Diesel engine KOOP KD192F (7,6 kW)
  • Rotation 360°
  • Gear hydraulic pump
  • Rubber tracks – suitable for asphalt, concrete, tiles
  • Dozer board
  • Stable chassis width 940 mm

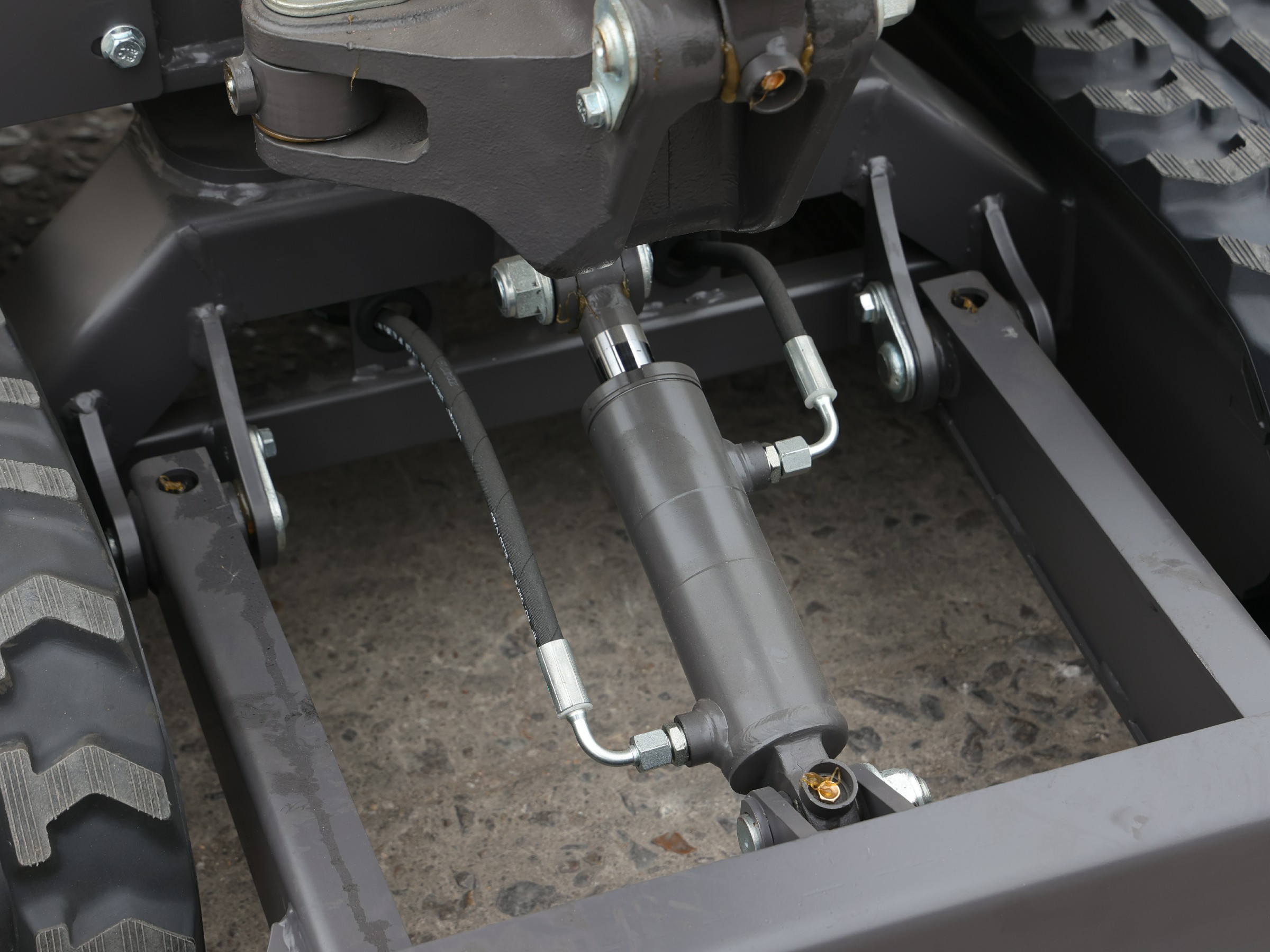

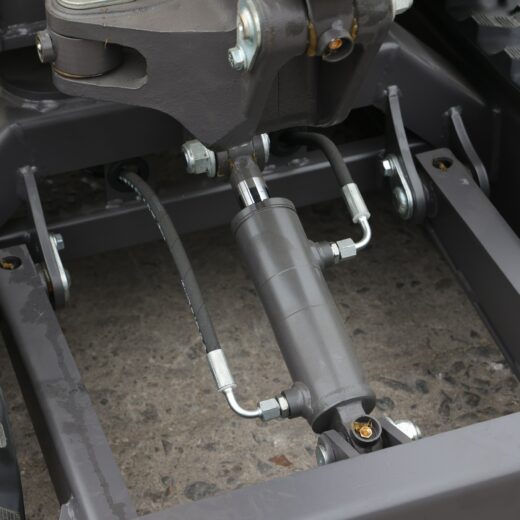

  • Hydraulic arm with a single cylinder
  • Spacious open cabin with a flat floor

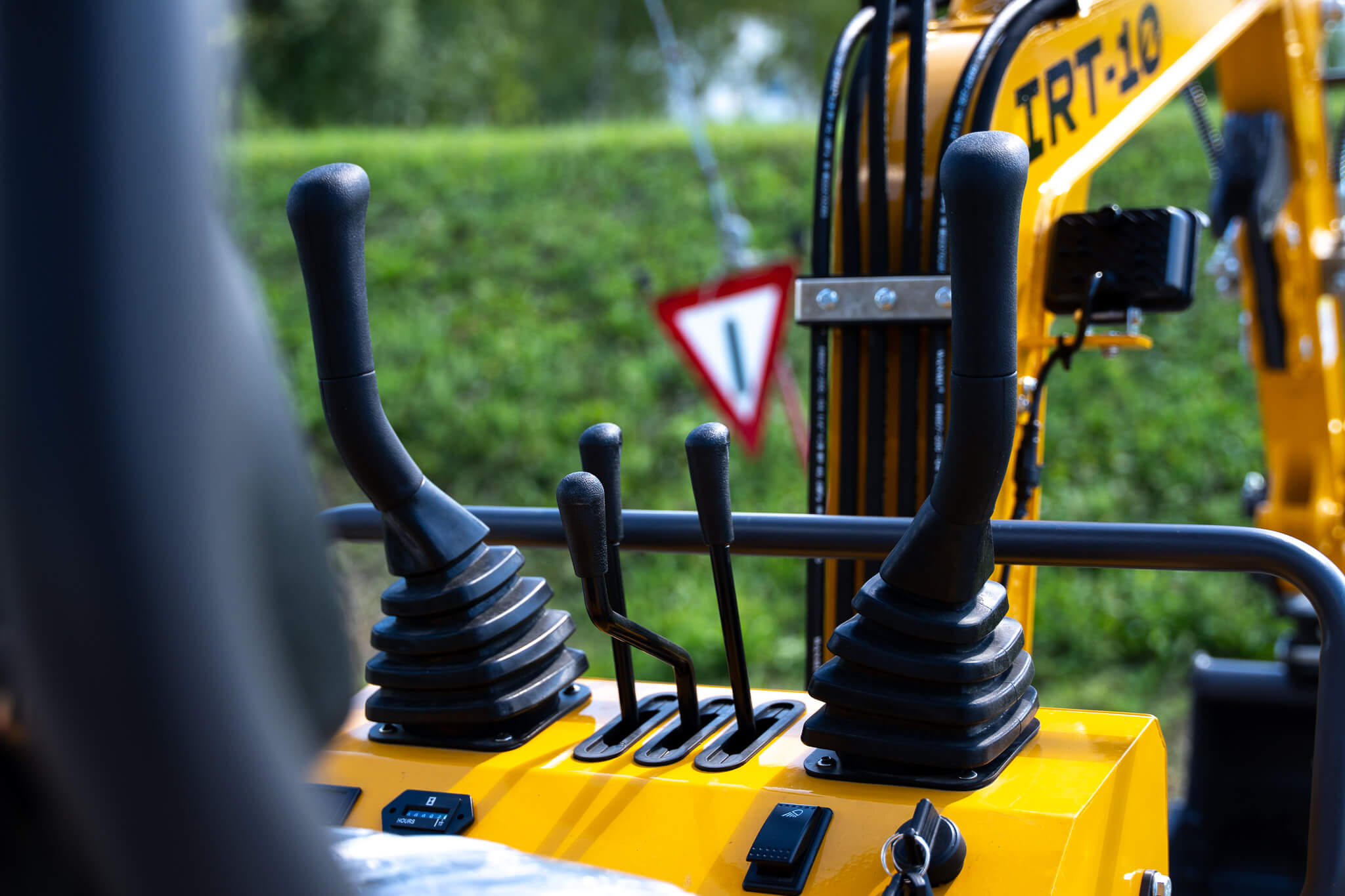

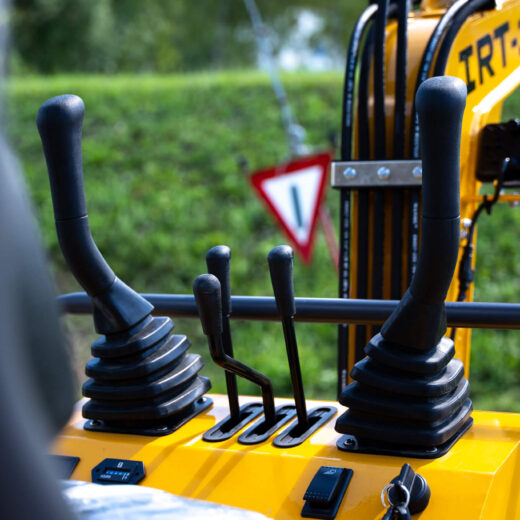

  • Ergonomic control handles (hydraulic pilot system)
  • Voltmeter, hour meter, light switch
  • Seat belt

Dimensions

A – Wheelbase: 910 mm
B – Total track length: 1235 mm
C – Ground clearance of platform: 400 mm
D – Rear turning radius: 840 mm
E – Chassis width: 940 mm
F – Track width: 180 mm
G – Track height: 320 mm
H – Transport length: 2345 / 3020 mm
I – Seat height from ground: 1545 mm
J – Total height: 2310 mm

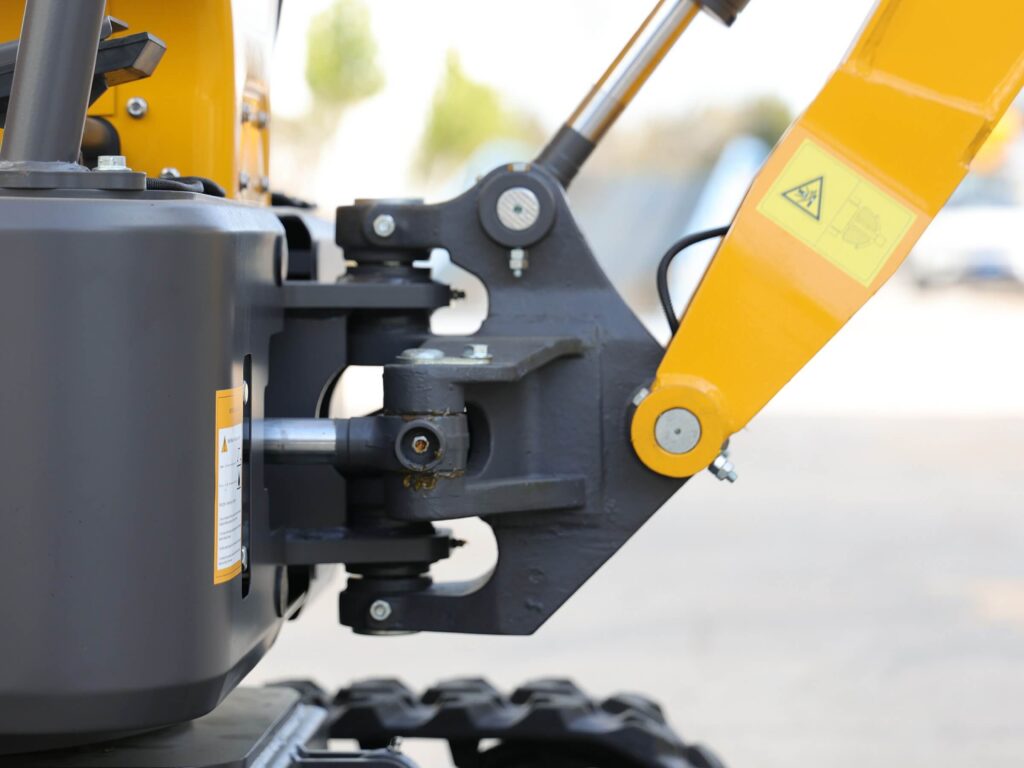

M – Arm swing to the right: 43°
N – Arm swing to the left: 49°

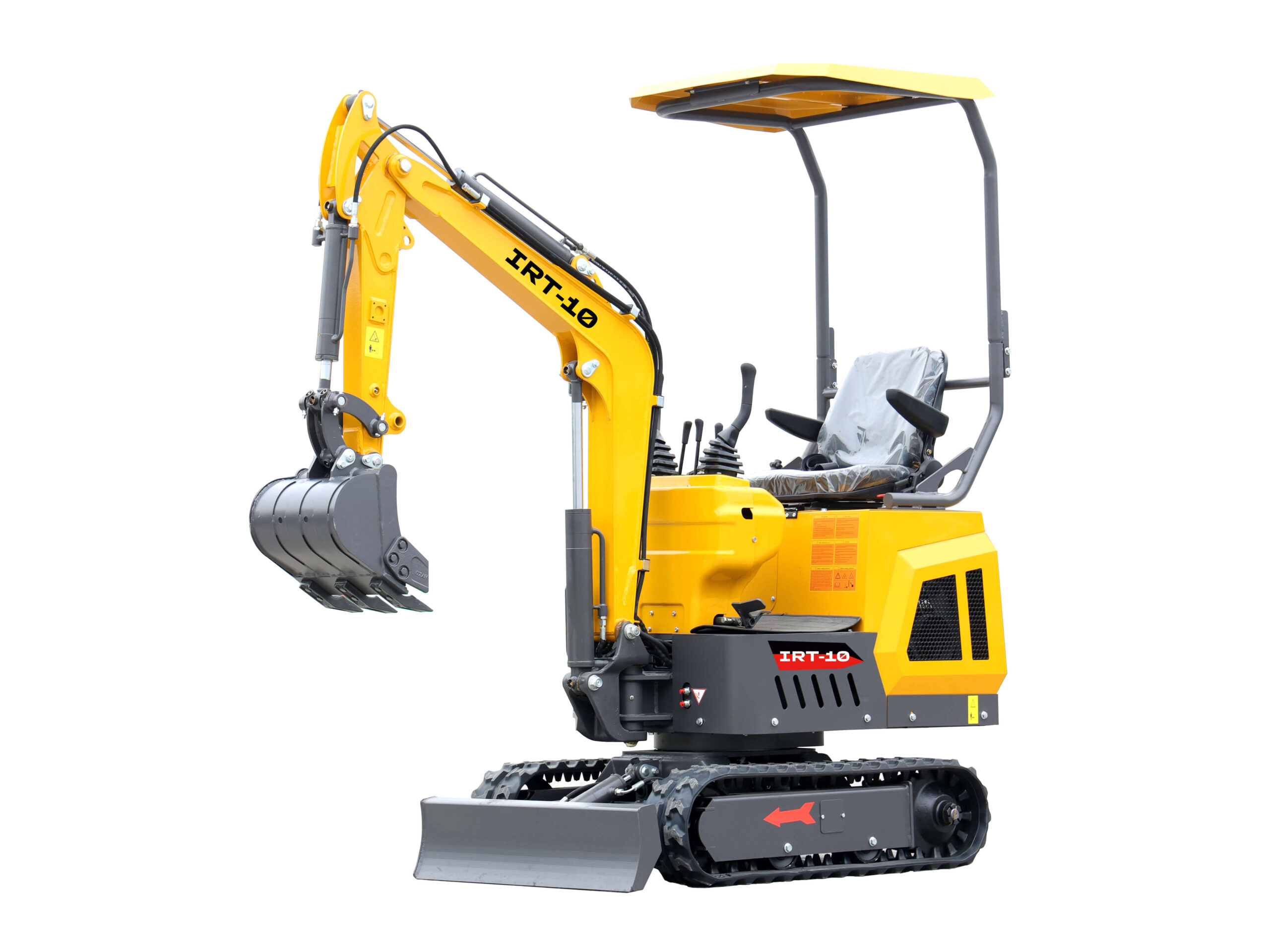

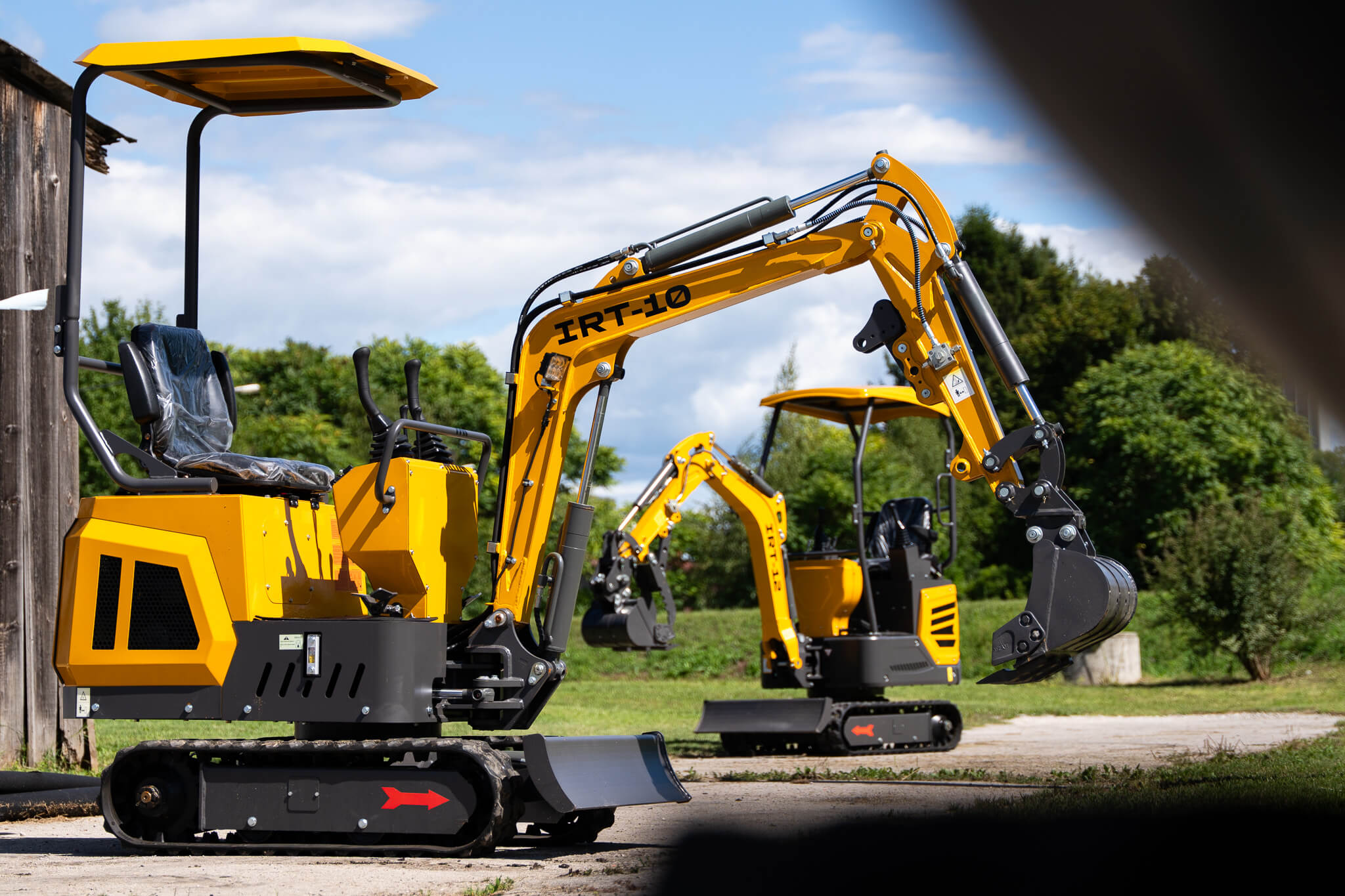

Compact, powerful, and efficient

Mini excavator IRT-10 combines exceptional digging power, stability, and maneuverability in a housing only 940 mm wide. Equipped with a reliable KOOP KD192F engine (7,6 kW) and an advanced hydraulic system that ensures precise and powerful operation. 360° rotation, rubber tracks, and the side arm movement function allow work even in the narrowest spaces. The comfortable control console and dozer blade further enhance the versatility of the machine, making it a perfect choice for construction work in urban areas or on hard-to-reach terrains.

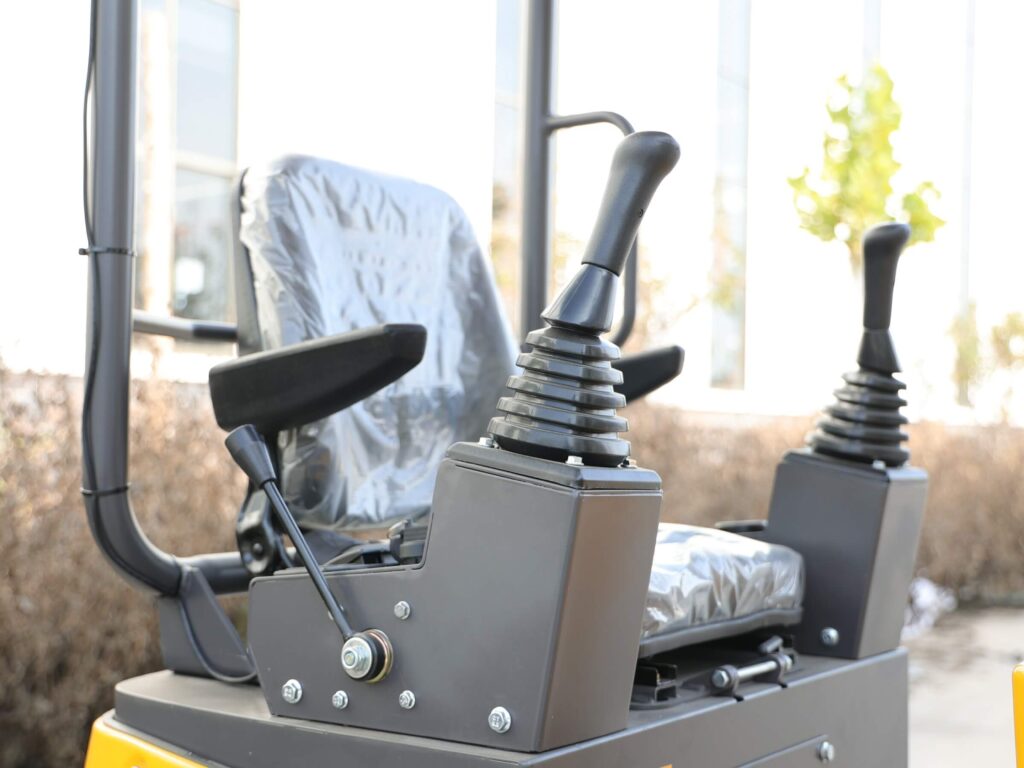

Spacious and comfortable cabin

The cabin offers plenty of space, a flat floor for easier movement, and comfortable access. The electronic control panel provides an easy overview of functions such as operating hours, battery voltage, lighting, and startup. Ergonomically positioned handles, a comfortable seat, and a safety belt ensure safe and efficient operation in all working conditions.

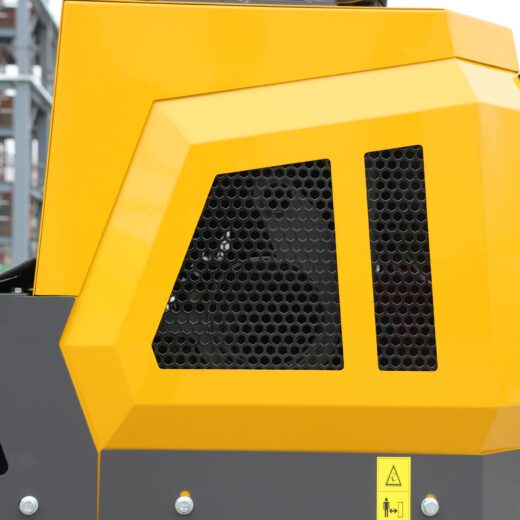

Simple and reliable

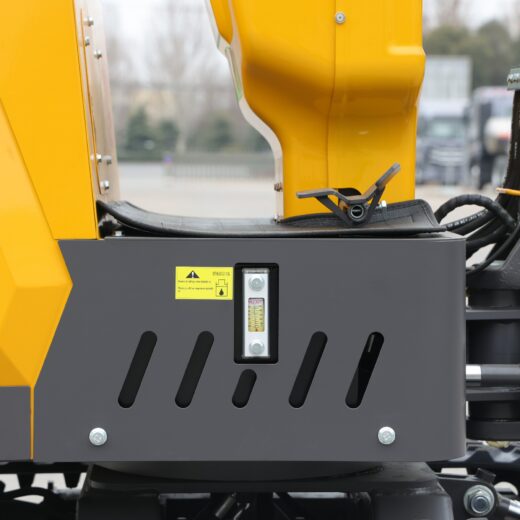

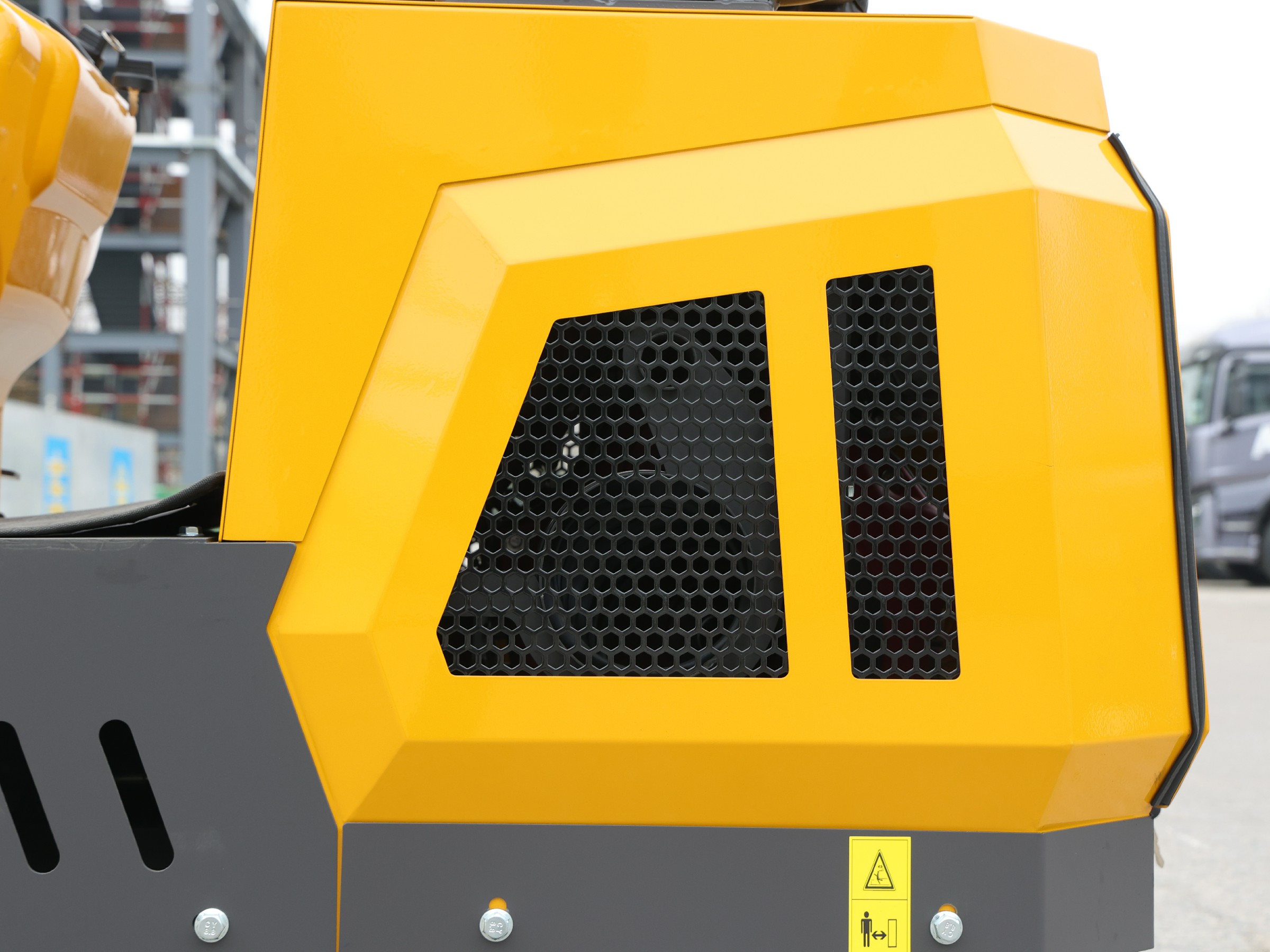

Smart design allows quick access to the main components, simplifying regular checks and servicing. This significantly reduces maintenance time and increases reliability. In addition, the machine ensures a high level of safety and durability, allowing for worry-free use even in demanding conditions.
