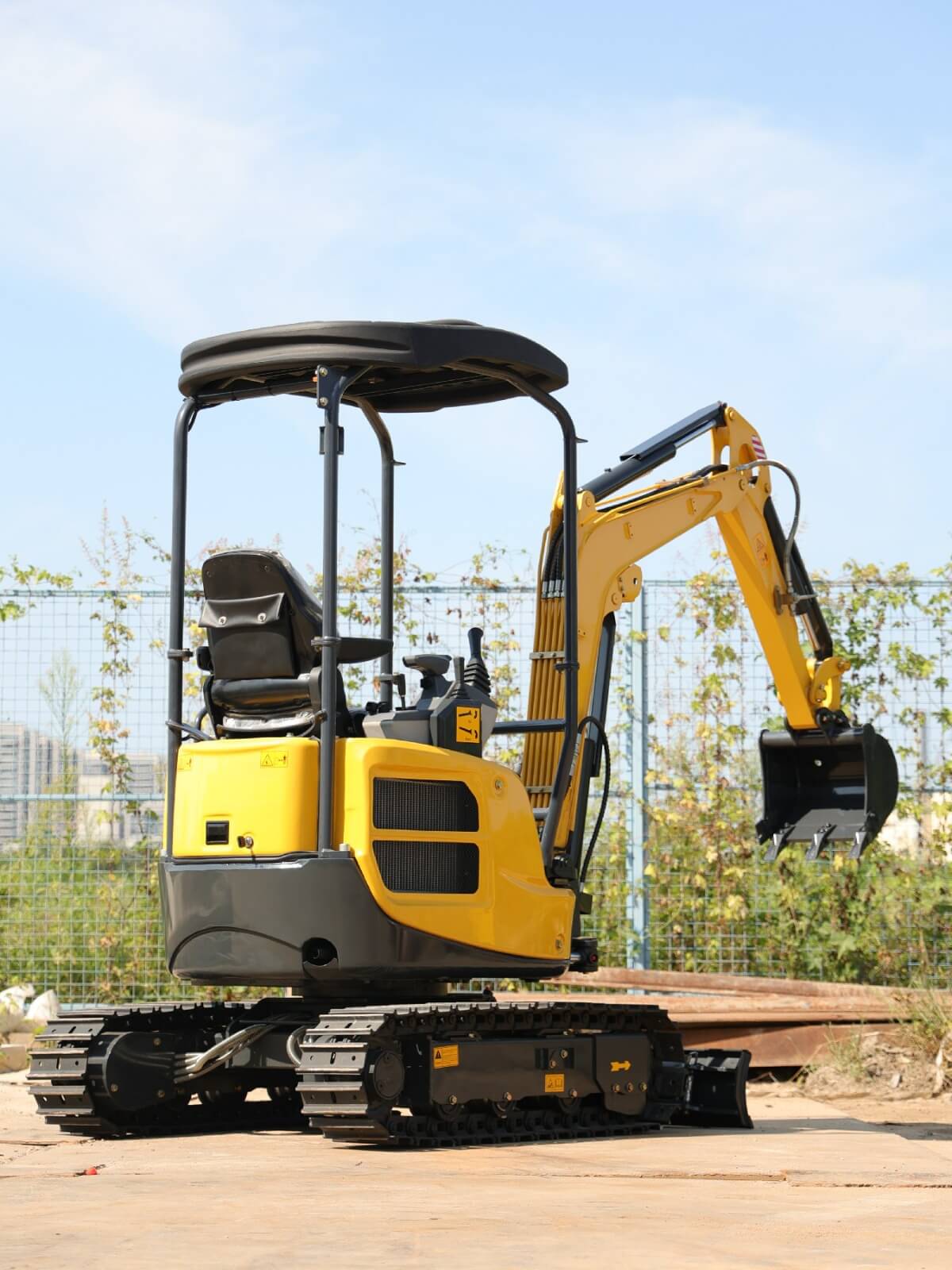

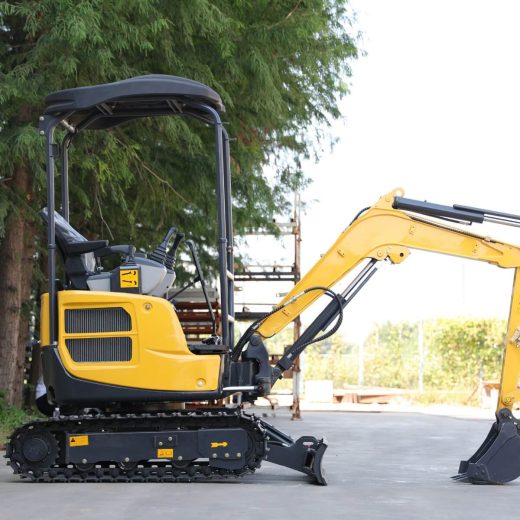

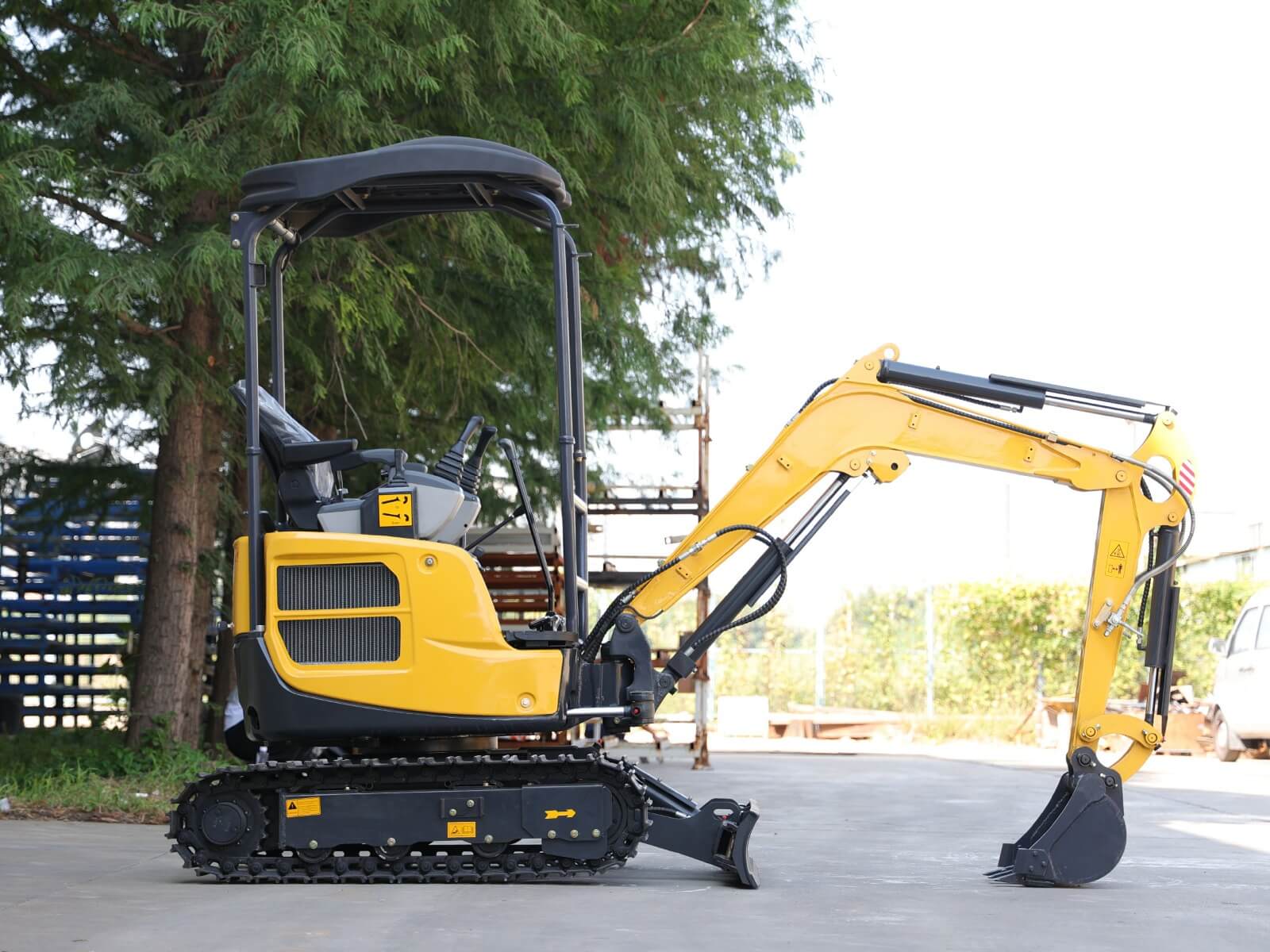

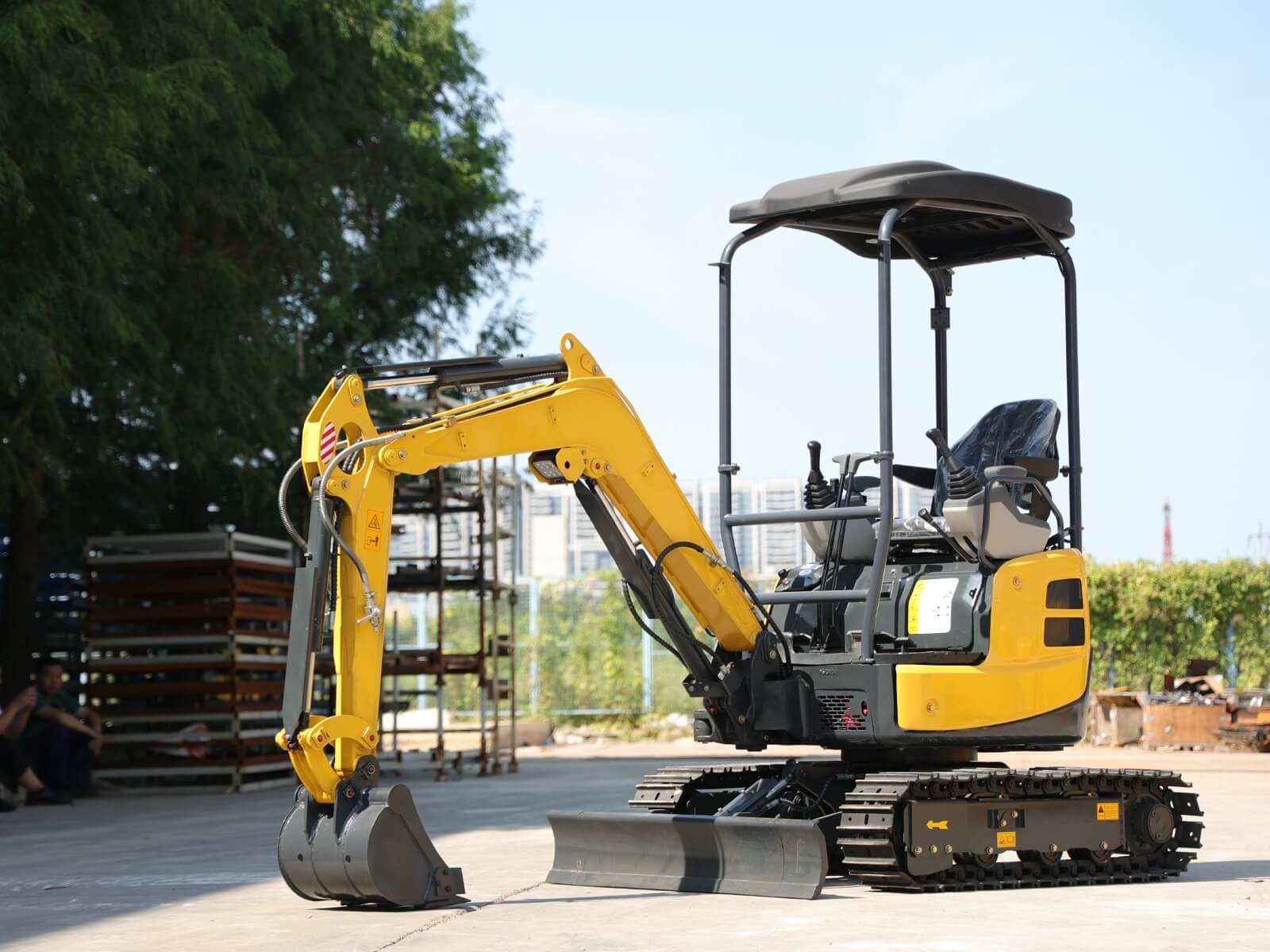

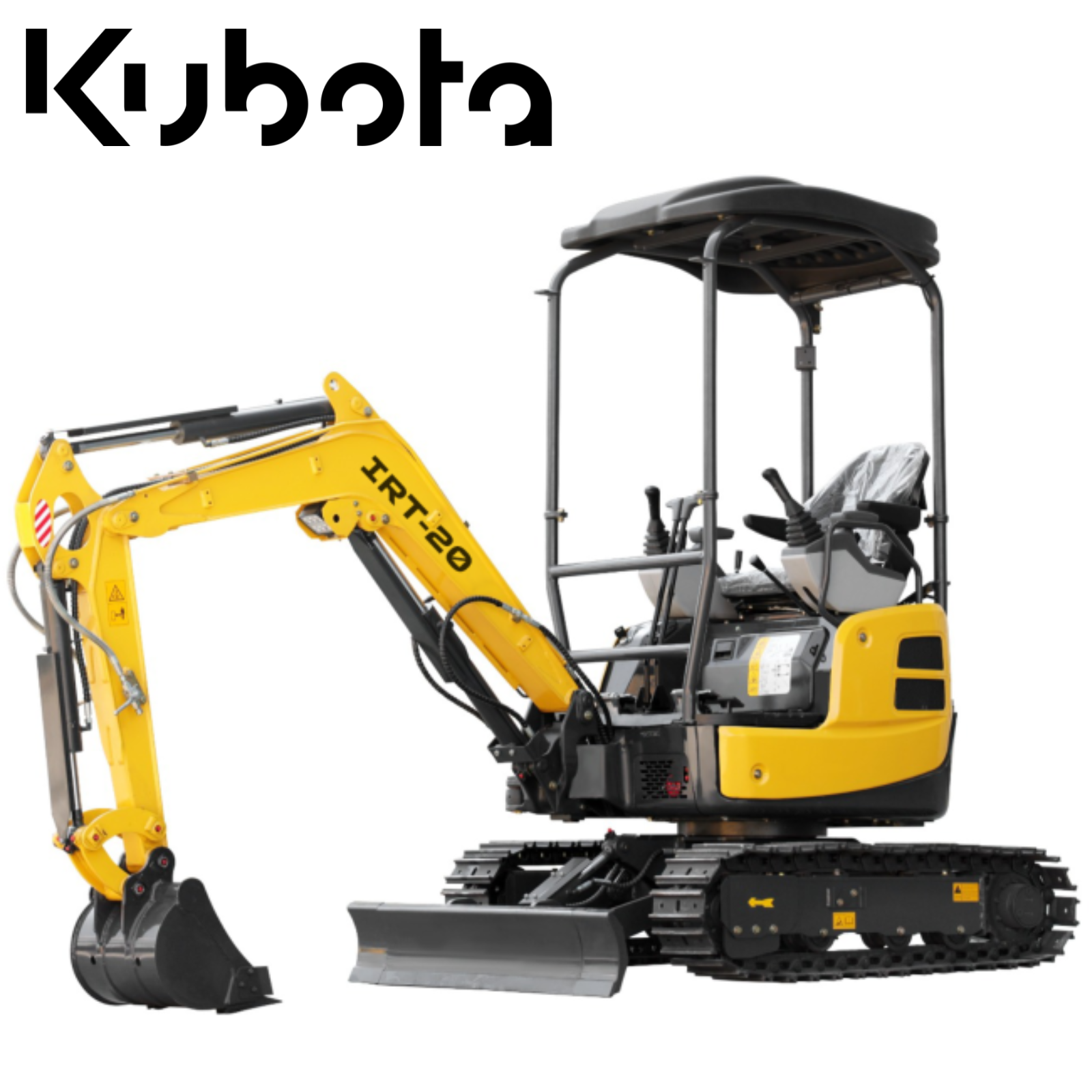

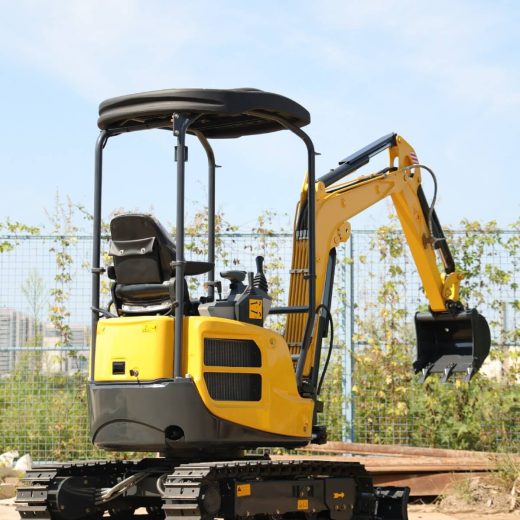

Mini excavator IRT20 (KUBOTA) – 2000kg

In stock

IRT-20 is a powerful and reliable mini excavator weighing 2000 kg, suitable for professional use on construction sites, agricultural areas, challenging terrains, and for precise tasks in confined spaces. Powered by a three-cylinder diesel engine Kubota D902 with a power of 11.8 kW at 2300 rpm and a displacement of 0.898 L. In combination with a gear hydraulic pump and a working pressure of 16 MPa, the machine provides a stable and efficient hydraulic system with a flow of 15.6 + 15.6 + 7.8 L/min. It maintains high performance even on inclines up to 30°, and thanks to its small turning radius (1395 mm) and rubber tracks, it excels in narrow, urban, and demanding work environments.

With the purchase, you receive FREE: Excavator bucket 40cm + Quick coupler

Delivery options
Delivery options

We can organize delivery through our trusted and reliable delivery partners.

Price: £17,400.00 + VAT

Purchase on installments
RELIABLE SERVICE
WARRANTY WITH PURCHASE
SPARE PARTS FOR ALL MACHINES
PROFESSIONAL ASSISTANCE AND CONSULTING
Working weight 2000 kg
Engine model Kubota D902
Engine type 3-cylinder diesel
Engine power 11.8 kW / 2300 rpm
Engine displacement 0.898 L
Driving speed 2-4 km/h
The speed of cabin rotation 10 rpm
Maximum climbing ability 30°
Pressure on the ground 0.3 kgf/cm²
Material (Caterpillar) Tire
Track tensioning tip Grease Cylinder
Pump type Gear pump
Working pressure 16 MPa
Flow of hydraulic fluid 15.6 + 15.6 + 7.8 L/min
Capacity of the hydraulic reservoir 11 L
Fuel tank capacity 19 L
The largest digging radius on the ground 3735 mm
The greatest depth of digging 3790 mm
The greatest digging depth 2290 mm
The greatest digging depth 3485 mm
Maximum unloading height 2440 mm
The greatest vertical digging depth 1750 mm
Minimum turning radius 1395 mm
The maximum lifting height of the dozer blade 160 mm
The maximum depth of digging with a dozer blade 220 mm
  • Engine: Kubota D902 (11.8 kW)
  • Cabin rotation 360°

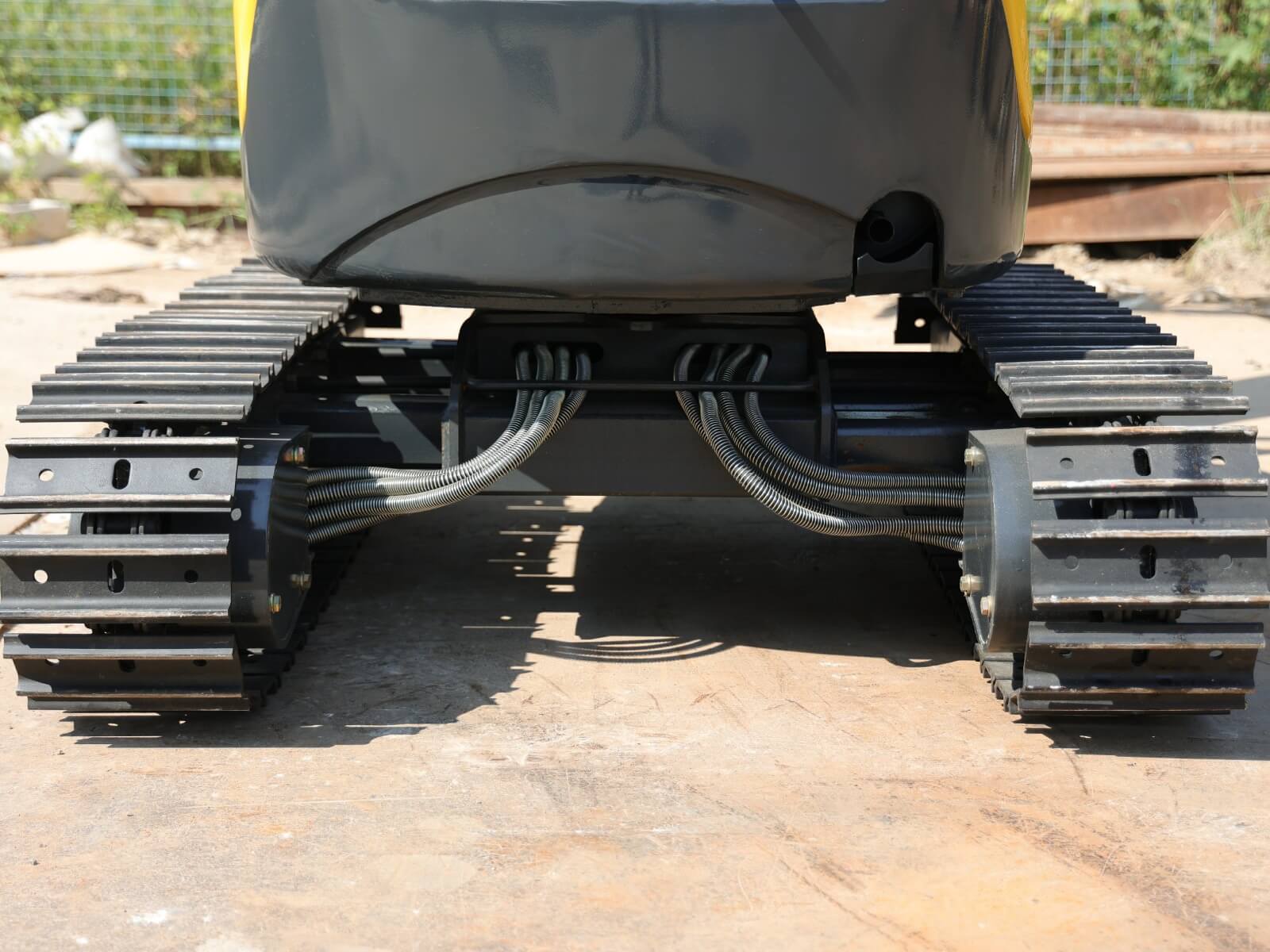

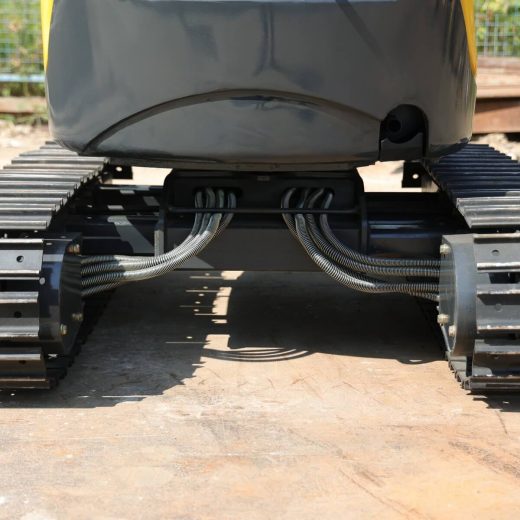

  • Rubber tracks
  • Dozer blade
  • Function of arm rotation (boom swing) – left 60°, right 50°
  • Comfortable cabin with adjustable seat

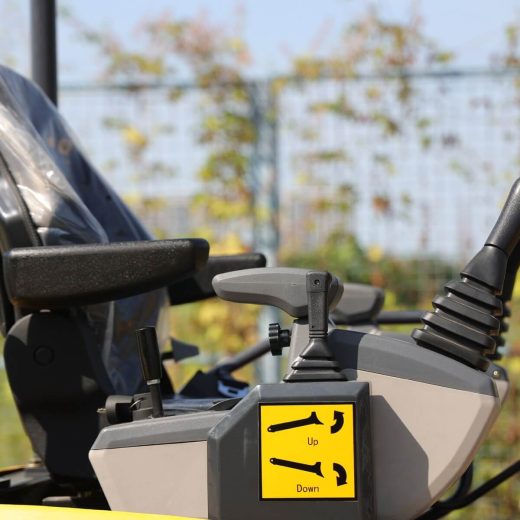

  • Hydraulic pilot joystick
  • Hour meter for monitoring machine wear
  • Digital display of coolant temperature
  • Digital display of battery voltage
  • Work light switch
  • Operator safety belt

Dimensions

A – Wheelbase: 1230 mm
B – Total track length: 1550 mm
C – Platform ground clearance: 440 mm
D – Rear turning radius: 805 mm
E – Chassis width: 1000-1250 mm
F – Track width: 230 mm
G – Track height: 320 mm
H – Transport length: 2225 / 3470 mm
I – Seat height from ground: 1655 mm
J – Total height: 2295 mm
M – Arm swing to the right: 50°
N – Arm swing to the left: 60°

Compact, powerful, and efficient

This machine combines powerful digging force, an advanced hydraulic system, and a stable chassis with a width of 1000 mm. Rotation of 360°, rubber tracks, and lateral arm movement (60° to the left, 50° to the right) enable efficient work even in tight spaces. The control console, dozer blade, and adjustable undercarriage further enhance the machine’s versatility on various terrains – from urban areas to challenging construction sites.

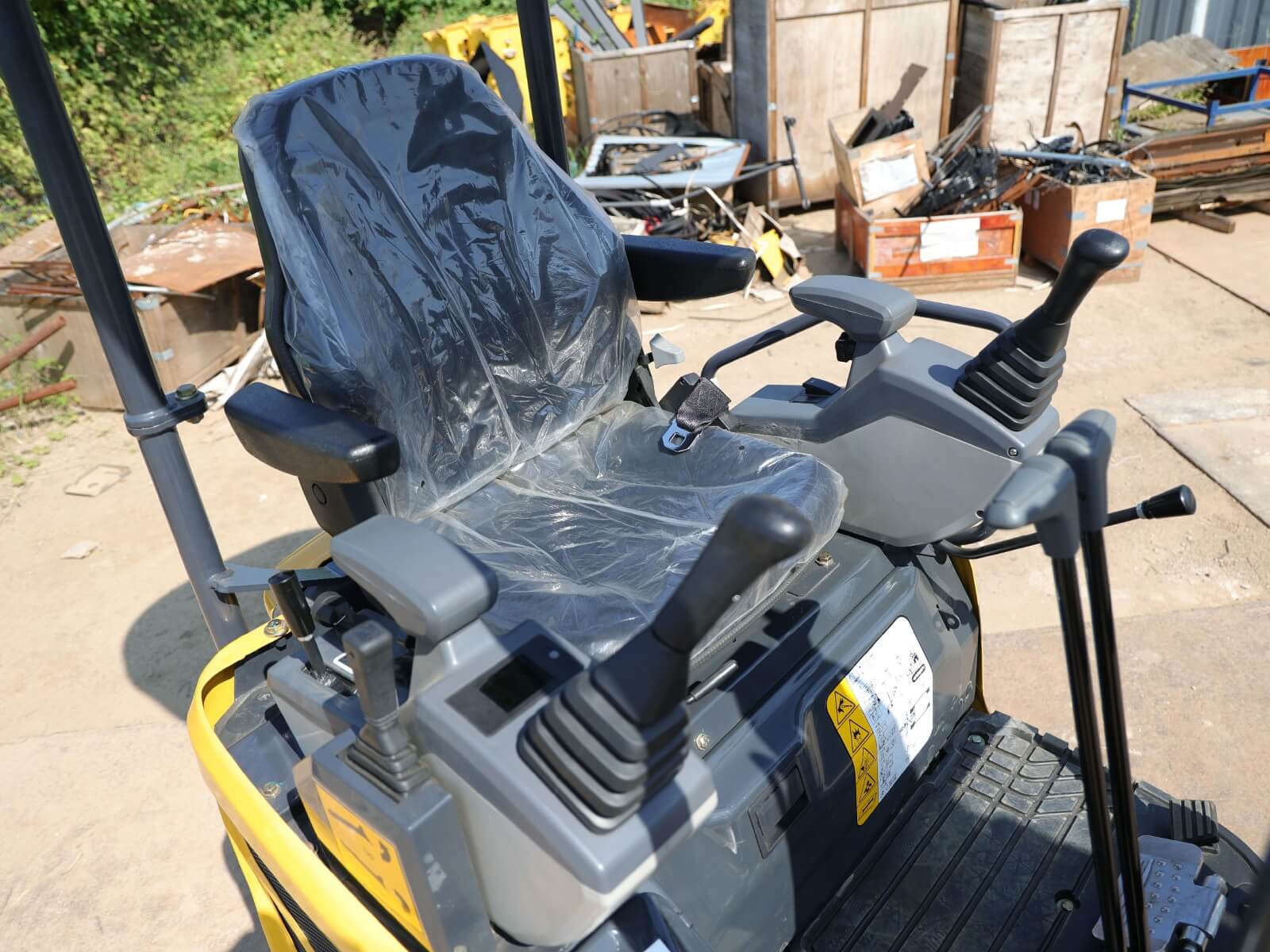

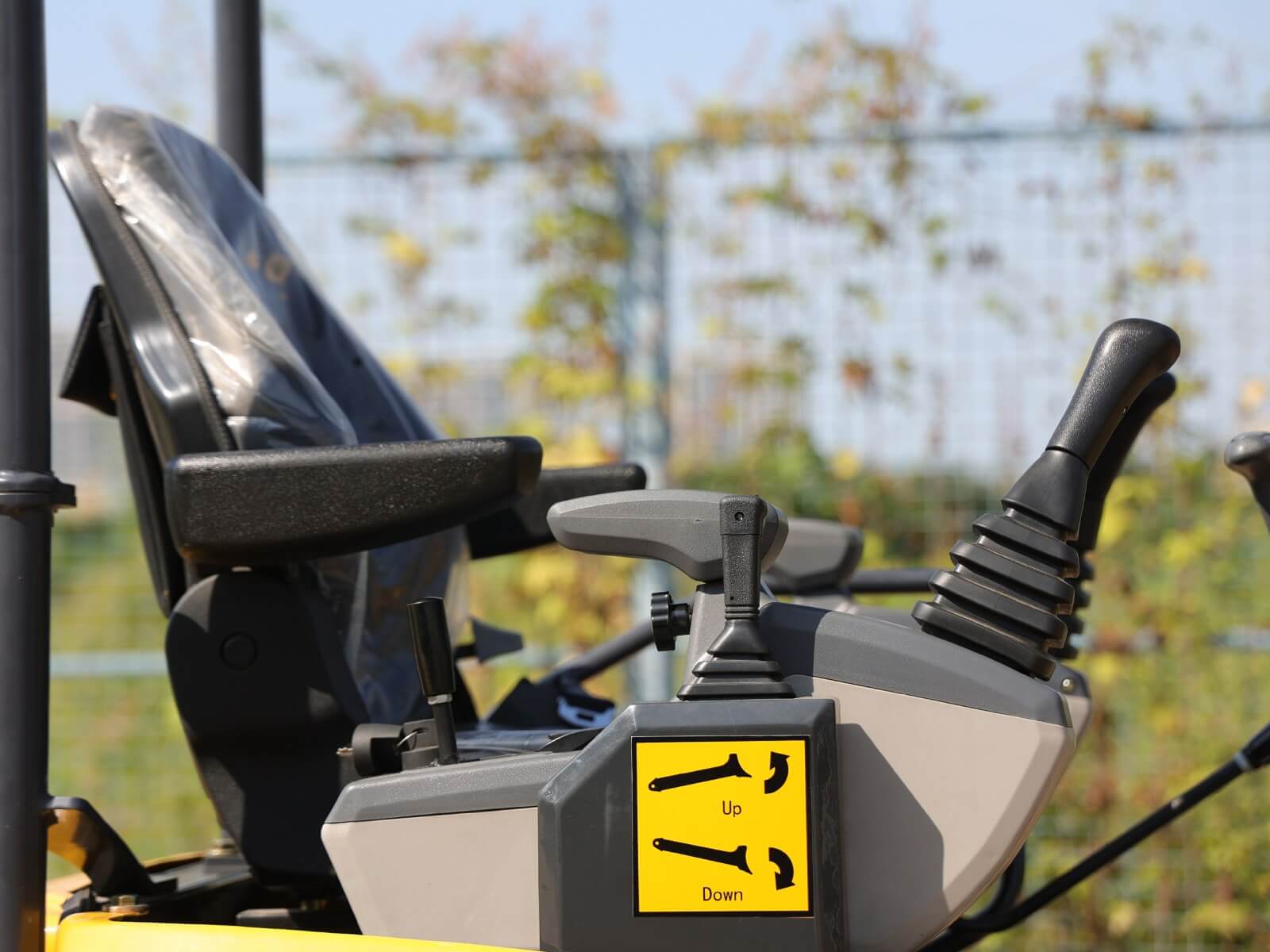

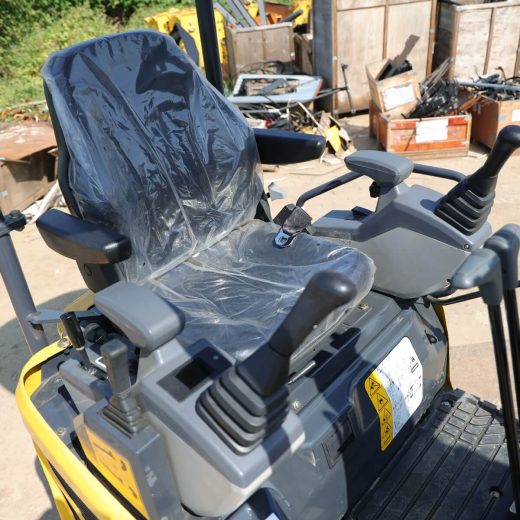

Spacious and comfortable cabin

The cabin offers more space, a flat floor, and a wide entrance, which allows for comfortable access and better mobility during work. The overview dashboard displays key information – operating hours, engine temperature, voltage status, and energy consumption. All controls are arranged ergonomically, allowing for easy and safe operation. Precise hydraulic levers, a comfortable seat, and clearly positioned function buttons ensure a pleasant and efficient working experience even during longer work intervals.

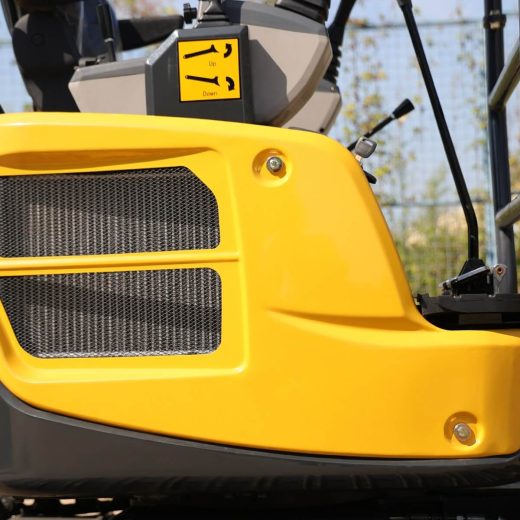

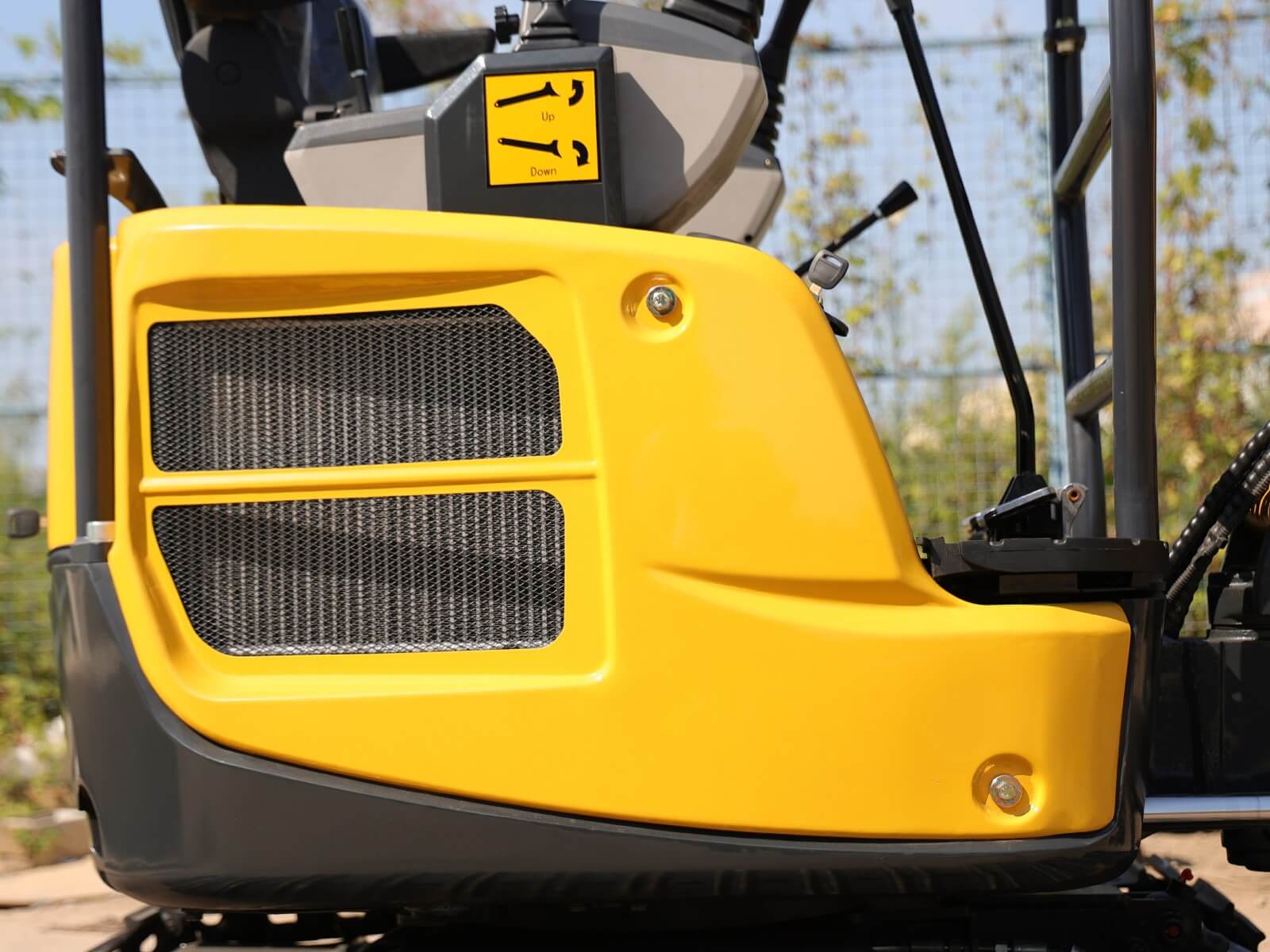

Simple and reliable

Smart design allows quick access to the engine and key components, simplifying regular checks and servicing. Maintenance is quick and clear, reducing potential work stoppages. Durable construction and thoughtful system layout ensure safe and reliable operation in all conditions.
